FT-49-GD45231R 型 10GHz 平衡光电探测器

产品描述
FT-49-GD45231R 是一款高速高灵敏度平衡探测光电接收模块，采用单片 InGaAs 平衡探测器芯片并集成内偏置电路，适用于多种数字信号应用。

产品特点
● InGaAs PD 芯片单片集成
● 集成内偏置电路
● DC 耦合
● 气密性封装，SMA 连接器输出

应用
● DPSK/ DQPSK 光通信系统
● 多普勒激光雷达测量
● 相干光系统
● 高速测试测量

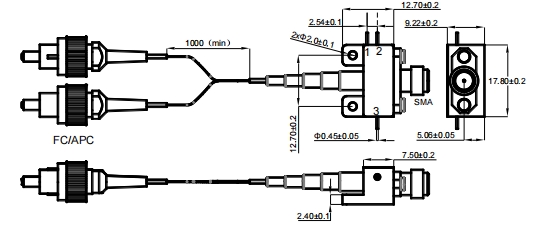

封装外形、尺寸及引脚定义（单位：mm）

注：本产品有全国产化型号可选
本产品为FT-49系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
