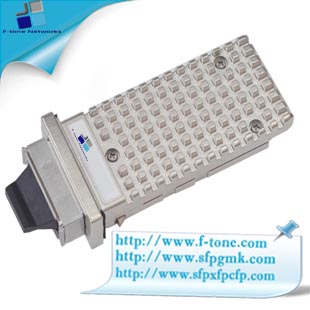

X2光模块是10G光模块中主要的一类封装模块,由XENPAK发展而来。是一种支持热插拔的输入/输出装置,主要用于以太网X2端口的交换机或路由器与网络连结端口。

X2光模块历史发展:

X2是从Xenpak标准演进而来的,其内部功能模块与Xenpak以及在电路板上的应用都基本相同,在实现10G以太网光接口的功能方面都是只使用一个模块即可。由于Xenpak光模块安装到电路板上时需要在电路板上操作比较复杂地开槽,且无法实现高密度应用。而经过改进的X2光模块(其体积只有Xenpak的一半左右)可以直接放到电路板上,因此适用于高密度的机架系统和PCI网卡应用。

X2光模块特点及应用:

X2也使用Xenpak电气接口,但有少数地方例外。X2 提供一个4位端口地址的空间,比Xenpak少一位。 X2 还减少了电源引脚的数目,并使底板和电气接地公用。X2保留了Xenpak的4个厂商专用的引脚。在光技术方面,X2支持10GbE(以太网)、 OC192同步光纤网、10GFC(光纤通道)和其他标准。

X2光模块

10GBASE X2 ER 1550nm 40km Transceiver

10GBASE X2 ER 1550nm 40km Transceiver

X2-10G-ER,10GBASE X2 ER 1550nm 40km Single-Mode Optical Transceiver,The 10G X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications.






10GBASE X2 LR 1310nm 10km Single-Mode Optical Transceiver

10GBASE X2 LR Transceiver

X2-10G-LR,10GBASE X2 LR 1310nm 10km Single-Mode Optical Transceiver

Specifications,Manufacturer: F-tone,Product Type: X2 transceiver module,Interfaces/Ports: 1 x 10GBase-LR,Interfaces/Ports Details: 1 x SC Duplex Connector 10GBase-LR,Average Output Power:-6~ -1dBm,Receiver Sensitivity:-15dBm,Data Transfer Rate: 10 Gbps Wavelength: 1310nm,Transfer Distance: 10km,Operating Case Temperature Standard: 0°C~+70°C,Built-in Digital Diagnostic Function


10GBASE X2 LRM 1310nm Transceiver

10GBASE X2 LRM 1310nm Transceiver

X2-10G-LRM,10GBASE X2 LRM 1310nm 220m Multi-Mode Optical Transceiver,Manufacturer: F-tone,Product Type: X2 transceiver module,Interfaces/Ports: 1 x 10GBase-LRM,Interfaces/Ports Details: 1 x SC Duplex Connector 10GBase-LRM,Average Output Power:-5.2~0dBm,Receiver Sensitivity:-14.4dBm,Data Transfer Rate: 10 Gbps,Wavelength: 1310nm,Transfer Distance: 220m,Built-in Digital Diagnostic Function



10GBASE X2 SR 850nm Transceiver

10GBASE X2 SR 850nm Transceiver

X2-10G-SR,10GBASE X2 SR 850nm 300m Multi-Mode Optical Transceiver,Manufacturer: F-tone,Product Type: X2 transceiver module,Interfaces/Ports: 1 x 10GBase-SR,Interfaces/Ports Details: 1 x SC Duplex Connector 10GBase-SR,Average Output Power: -6 ~ -1dBm,Receiver Sensitivity:-10dBm,Data Transfer Rate: 10 Gbps,Wavelength: 850nm,Transfer Distance: 300m,Built-in Digital Diagnostic Function



10GBASE X2 ZR 1550nm 80km Single-Mode Optical Transceiver

10GBASE X2 ZR 1550nm 80km Transceiver

X2-10G-ZR,10GBASE X2 ZR 1550nm 80km Single-Mode Optical Transceiver,The 10G X2 80km transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications.

BIDI X2 TX1270nm/RX1330nm Transceiver

BIDI X2 TX1270nm/RX1330nm Transceiver

BIDI X2 TX1270nm/RX1330nm Transceiver,10GB BIDI X2 Simplex SC 1270/1330nm 0~160km Optical Transceiver,The BiDi X2 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the X2 20-pin connector to allow hot plug capability.

BIDI X2 TX1330nm/RX1270nm Transceiver

BIDI X2 TX1330nm/RX1270nm Transceiver

BIDI X2 TX1330nm/RX1270nm Transceiver,10GB BIDI X2 Simplex SC 1270/1330nm 0~160km Optical Transceiver,The BiDi X2 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the X2 20-pin connector to allow hot plug capability.

CWDM X2 Transceiver

CWDM X2

F-tone CWDM X2 transceiver series is designed for CWDM optical data communications such as 10G Ethernet 10GBASE-ER/EW/ZR and 10G Fibre Channel 1200-SM-LL-L applications. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. Maximum optical budget is 23dB .

CWDM X2 40km Transceiver

CWDM X2 40km Transceiver

CWDM X2 40km Transceiver,The 10G CWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with a directly modulated CWDM EML laser, a receiver with a APD photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).

CWDM X2 80km Optical Transceiver

CWDM X2 80km Optical Transceiver

CWDM X2 80KM Transceiver,The 10G CWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with a directly modulated CWDM EML laser, a receiver with a APD photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).

DWDM X2 Transceiver

DWDM X2

F-tone Dense Wavelength-Division Multiplexing (DWDM) X2 pluggable module allows enterprise companies and service providers to offer scalable and easy-to-deploy 10 Gigabit Ethernet services in their networks. Both DWDM X2 ER 40km and DWDM X2 ZR 40km are available for DWDM 10G Ethernet application, DWDM grid 100Ghz and 50Ghz.

DWDM X2 40km Optical Transceiver

DWDM X2 40km Optical Transceiver

10GBASE 100GHz DWDM X2 40km Single-Mode Optical Transceiver,The 10G DWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with DWDM cooled EML laser, a receiver with a PIN photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).

DWDM X2 80km Optical Transceiver

DWDM X2 80km Optical Transceiver

10GBASE 100GHz DWDM X2 40km Single-Mode Optical Transceiver,The 10G DWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with DWDM cooled EML laser, a receiver with a PIN photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).

X2 Board

X2 Test Board

This test board is used for X2, XENPAK, XPAK modules tests. For more information, please, contact with us.This test board is used for X2, XENPAK, XPAK modules tests. For more information, please, contact with us.

X2 to SFP+ Converter

X2 to SFP+ Converter

The F-tone X2 to SFP+ Converter Module offers investment protection for 10 Gigabit Ethernet X2 ports of X2 switches by enabling migration from X2 to Small Form-Factor Pluggable Plus (SFP+) form factor without having to upgrade or replace the switches. This Module converts a 10 Gigabit Ethernet X2 port into a 10 Gigabit Ethernet SFP+ port.
