MTP® Brand Connectors

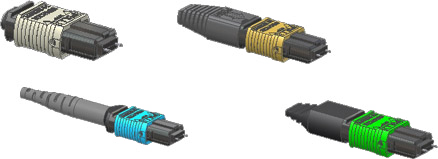

MTP-Connectors
Features
  • Patented floating ferrule design ensures fiber contact integrity
  • Terminates ribbon fiber or loose individual fibers
  • Designed for low loss and standard loss SM and MM applications
  • Patented elliptical guide pin tip to minimize ferrule debris
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Compatible with US Conec MT ferrules in fiber counts 4 - 24
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Housing is removable for quick change of pin clamps and easy ferrule cleaning / re-polishing
  • Alignment achieved with high precision guide pins
  • No-epoxy housing design
  • Family of bulkhead adapters available
  • Keyed/Colored for security or Network Segregating available
Applications & Associated Standards
  • Array trunk cables
  • Array fiber to single fiber fanouts and cassettes
  • High fiber density card edge access
  • Optical switching interframe connections
  • Meets IEC Standard 61754-7
  • Meets TIA/EIA 604-5 Type MPO
  • Structured cabling per TIA-568-C
  • Parallel Optics
  • Optical Internetworking Forum (OIF) Compliant
  • Infiniband Compliant
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3
  • SNAP 12
  • POP 4
  • QSFP
Specifications


MM MT Elite®
Multimode MT Ferrule
Standard
Multimode MT Ferrule

SM MT Elite®
Single-mode MT Ferrule
Standard
Single-mode MT Ferrule
Insertion Loss

0.1dB Typical (All Fibers)
0.35dB Maximum (Single Fiber)2,3,5
0.20dB Typical (All Fibers)
0.60dB Maximum (Single Fiber)2,3,5

0.10dB Typical (All Fibers)
0.35dB Maximum (Single Fiber)1,4,5
0.25dB Typical (All Fibers)
0.75dB Maximum (Single Fiber)1,5
Optical
Return Loss
> 20dB

 5
> 20dB

 5
> 60dB (8° Angle Polish)

 5
> 60dB (8° Angle Polish)

 5

1 As tested per ANSI/EIA-455-171 Method D3
2 As tested per ANSI/EIA-455-171 Method D1
3 As tested with proposed encircled flux launch condition on 50um fiber and 850nm per IEC 61280-4-1
4 Compliant with proposed IEC 61755-3-31/GRADE B
5 For 48-fiber MM MTs, 72-fiber MM MTs, or 24-fiber SM MTs, please see our FAQs for more details.
