MT-RJ Ferrule Kits

0.0/5 rating (0 votes)

Description

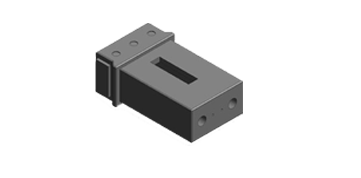

mtrjferrule

 MTP-MPO-SYSTEM



Features
  • High density; fiber spacing is 0.75mm
  • Consistent optical performance for multimode and single-mode fibers
  • High precision polishing systems available

Specifications


MM MT Elite®
Multimode MT Ferrule
Standard
Multimode MT Ferrule

SM MT Elite®
Single-mode MT Ferrule
Standard
Single-mode MT Ferrule
Insertion Loss

0.1dB Typical (All Fibers)
0.35dB Maximum (Single Fiber)2,3,5
0.20dB Typical (All Fibers)
0.60dB Maximum (Single Fiber)2,3,5

0.10dB Typical (All Fibers)
0.35dB Maximum (Single Fiber)1,4,5
0.25dB Typical (All Fibers)
0.75dB Maximum (Single Fiber)1,5
Optical
Return Loss
> 20dB
> 20dB
> 60dB (8° Angle Polish)
> 60dB (8° Angle Polish)

1 As tested per ANSI/EIA-455-171 Method D3
2 As tested per ANSI/EIA-455-171 Method D1
3 As tested with proposed encircled flux launch condition on 50um fiber and 850nm per IEC 61280-4-1
4 Compliant with proposed IEC 61755-3-31/GRADE B
5 For 48-fiber MM MTs, 72-fiber MM MTs, or 24-fiber SM MTs, please see our FAQs for more details.
