机械式光开关 1X2,2X2,D1X2,D2X2

机械式光开关 1X2,2X2,D1X2,D2X2

0.0/5 rating (0 votes)

Description

机械式光开关 1X2,2X2,D1X2,D2X2

产品特点
插入损耗极低,体积小用于动态配置分插复用器 OADM、交叉连接器 OXC、 系统监测与保护的理想器件。它波长范围宽,低信道串扰,高稳定性、高可靠性,光路无胶,纤小的封装更易于集成进高密度的光通信系统中。

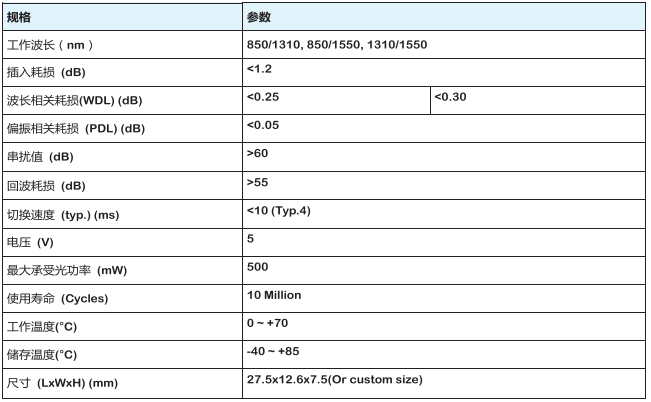

产品规格35b

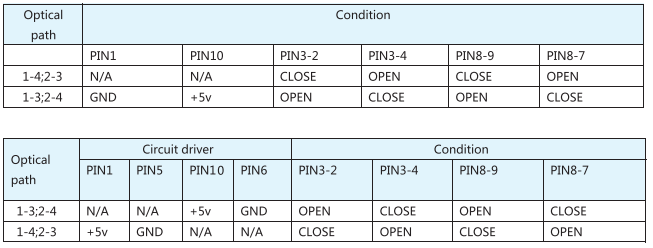

Latching35b

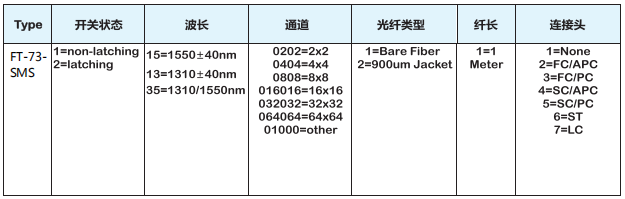

Ordering Information35c










Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
