思科QSFP-40G-CSR4光模块

CISCO CFP-100G-LR4

0.0/5 rating (0 votes)

Specifications

  • 产品型号: CFP-100G-LR4
  • 兼容品牌: 思科CISCO
  • 封装类型: CFP
  • 传输速率: 100Gbps
  • 传输距离: 10Km (6.2 miles)
  • 发射波长: 1294.53nm-1296.59nm,1299.02nm-1301.09nm,1303.54nm-1305.63nm,1308.09nm-1310.19nm
  • 接收波长: 1294.53nm-1296.59nm,1299.02nm-1301.09nm,1303.54nm-1305.63nm,1308.09nm-1310.19nm
  • 工作温度: 商业级0℃~+70℃/工业级-40℃~+85℃ 可选
  • 数字诊断: 带DDM
  • 接收灵敏度: 1 x 100GBase LR4, 10 Km
  • 接收灵敏度: 1 x 100GBase LR4, 10 Km

Description

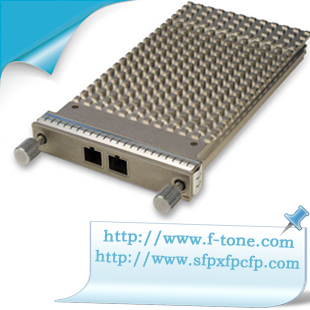

CISCO CFP-100G-LR4

CFP


Product Description
F-tone CFP-100G-LR4 - 1 x 100GBase LR4, 10 Km, Four 25.8 Gbps wavelength lanes: 1294.53 nm - 1296.59 nm, 1299.02 nm - 1301.09 nm, 1303.54 nm - 1305.63 nm, 1308.09 nm - 1310.19 nm CFP transceiver. 100% Cisco compatible.



  • Form Factor: CFP
  • Port Interface: 1 x 100GBase MPO
  • Interface Details: 1 x 100GBase LR4
  • Data Rate: 100 Gbps
  • Wavelength: Four 25.8 Gbps wavelength lanes: 1294.53 nm - 1296.59 nm, 1299.02 nm - 1301.09 nm, 1303.54 nm - 1305.63 nm, 1308.09 nm - 1310.19 nm
  • Distance: 10 Km (6.2 miles)
  • Temperature Range: 0℃~+70℃/-40℃~+85℃
  • Digital Diagnostics (DDM): Yes
  • Connection: Single-mode Fiber (SMF)
  • Hot Swappable: Yes
  • Dimensions: 0.54" x 3.23" x 5.7"
  • Data Sheet:  Contact us
  • Compatibility: CRS-1 Router, CRS-3 Router



Quality Guarantee



The F-tone Optics Cisco Transceiver line is guaranteed 100% Compatible and Functional in its intended router or switch and is 100% MSA compliant. The CFP-100G-LR4-A transceiver comes with an Industry leading Lifetime Warranty, surpassing the Cisco warranty for the same product. Every CFP-100G-LR4-A is environmentally tested in its specific port/platform, which includes compliance verification for distance, wavelength, traffic density and light.

Email us at: 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。

Warranty
Lifetime Replacement Warranty on all Optical Transceivers.
