330ps步进电机反射型光纤延迟线

330ps步进电机反射型光纤延迟线

0.0/5 rating (0 votes)

Description

产品简介

FT-VDL-MOS-R-33型可变光纤延迟线是一款反射式光路电控光纤延迟线,适用于高灵敏度光纤干涉仪等应用 。采用低插损角锥棱镜 、高精度的一维线性位移台与高效能步进电机控制技术,使系统具有极高的刚度和调节精度(传动部件最小步长可 达到1.5μm) ,可实现精密步长调节。独有的光路调校技术,可确保低插入损耗与低插入损耗变化量。高强度不锈钢加强结构,提高了反射型 光纤延迟线特有的尺寸稳定性差问题,方便科研教学用户实验观察提供定制加工,可根据客户要求对光学及电控部分进行调整。

产品特点

反射式光路结构。

外置步进电机。

高分辨率步进模式。

低插入损耗与全程插入损耗变化。

内置尾纤滑动槽避免光纤运动干涉

更高的结构稳定性,不锈钢U型架

应用领域

光学相干层析成像(OCT)

光学傅立叶光谱分析

光学(光纤)干涉仪

光纤传感系统

光学相位延迟发生与测量

光学时分复用技术(OTDM)

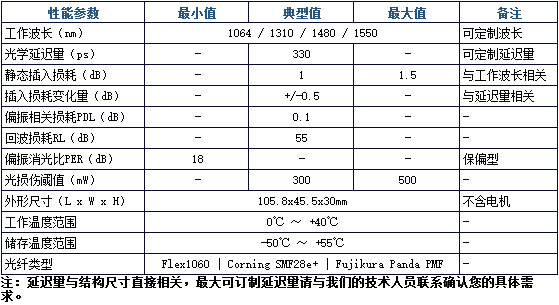

技术指标

13







Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
