1x9-sm1310-20km-SC/FC/ST

1x9-sm1310-20km-SC/FC/ST

0.0/5 rating (0 votes)

Description

1x9-sm1310-20km-SC/FC/ST

Feature
● 1×9 package with FC connector
● 1310nm FP Laser and PIN photodetector
● 20Km transmission with SMF
● +5.0V single power supply
● PECL compatible data input/output interface
● Low EMI and excellent ESD protection
● laser safety standard IEC-60825 compliant
● Compatible with RoHS

Application
● Ethernet
● Telecom

Description
The 1×9 transceiver supports 155Mbps and 20Km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

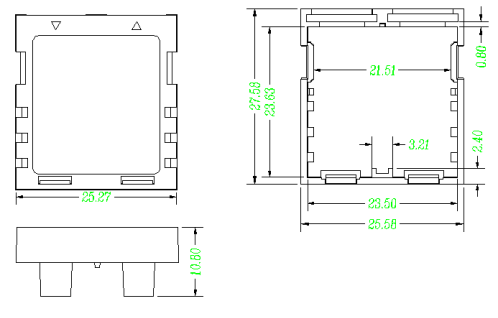

Mechanical Dimensions

85
Ordering information

Part Number

Product Description

FT19-1303H-20

1x9-sm1310-5V-PECL-SD:PECL-20km-SC

FT19-1303H-20F

1x9-sm1310-5V-PECL-SD:PECL-20km-FC

FT19-1303H-20T

1x9-sm1310-5V-PECL-SD:PECL-20km-ST













注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
