1U Single Channel EDFA for Telecom

Description
The product is high stability output EDFA. The key components of the product are high reliability Pump Laser. A unique APC(Automatic Power Control),AGC(Auto Gain Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power or gain, the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and monitor are intelligent and easy.
The optical circuit is specially designed for digital optical fiber communication system including:(1)lower noise figure;(2)high output booster and high sensitivity Pre-Amplifier improve the system loss budget(3)Broad input power range and output power adjustable make it use easily
The design of dual power mixed hot swap make it has longer MTBF. Also the power system can be backup.Employ the intelligent temperature control system, the fan is on when the module temperature above 45℃, meanwhile it will stop as the temperature is below 40℃, which ensure the thermal stability and fan life-time. Professional air duct design ensure the best temperature
stability.
Intelligent monitor and manage system. Perfect network management interface: RS232 RS485 and Ethernet, and the open mib ensures the connectivity with all network management system.

Feature
● Low noise figure: typical is＜4.5dB
● High-performance dual-pluggable power supply: 110V/220V mixed with -48V
● Perfect network interface: Ethernet, RS-485 and RS-232
● Support Telnet and SNMP network management
● Gain can be adjustable by network and manual.
● High precision AGC and ATC circuit.
● High saturation output power
● Flexible mechanical and circuit structure.
● OEM is available
● All performance compatible with Bellcore GR-1312-CORE

Application
● Pre-Amplifier
● Online-Amplifier
● Booster-Amplifier
● SDH Optical System

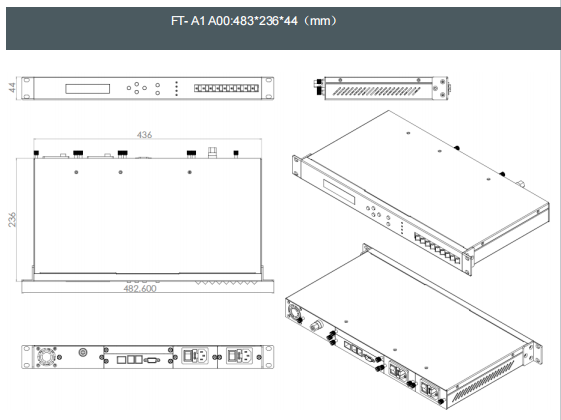

Mechanical Dimension

Order Information

注：本产品有全国产化型号可选
本产品为FT-A1系列，仅展示部分参数，如有需要，请联系我们。
