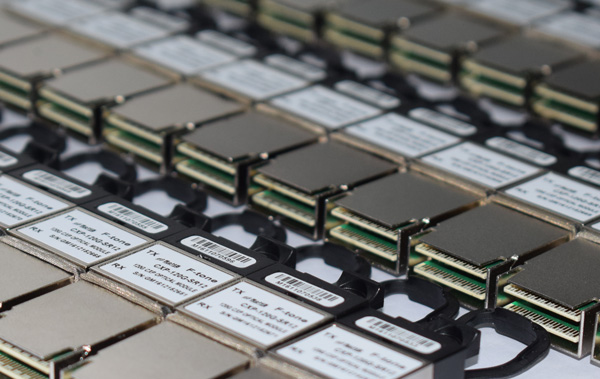

12ch-Parallel-Fiber-Optic Modules
Specifications
- 产品型号: 12ch-Parallel-Fiber-Optic Modules
- 兼容品牌: 全系列
- 封装类型: 12ch-Parallel-Fiber-Optic Modules
- 传输速率: 12x10G
- 传输距离: Avago VCSEL Array Transmitter/PIN Array Receiver
- 发射波长: Avago VCSEL Array Transmitter
- 接收波长: Avago PIN Array Receiver
- 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
- 数字诊断: 带DDM
- 接收灵敏度: 12ch-Parallel-Fiber-Optic Modules
- 接收灵敏度: 12ch-Parallel-Fiber-Optic Modules
Description
12ch-Parallel-Fiber-Optic Modules
These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850 nm. The electrical interface uses an 84-contact edge type connector. The optical interface uses a 24-fiber MTP® (MPO) connector. This module incorporates F-tone Technologies proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
- View Data Sheet (PDF)
Lifecycle status:
Active
Features [-]
- Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and IBTA Annex A6 CXP Interface Specification
- Each of the twelve channels is compliant on a per lane electrical and optical specification basis with the IEEE 802.3ba 100GbE (100 GBASE-SR10 and CPPI) specifications, and supporting InfiniBand QDR/DDR/SDR application
- Multi-rate capable from 1 Gbps to 10.5 Gbps
- High Channel Capacity: >120 Gbps per module, bidirectional, with twelve independent Transmitters and Receivers each
- Operates at 10.3125 Gbps per channel with 64b/66b encoded data for 100GbE application and at 10 Gbps with 8b/10b encoded data for IB-QDR application
- Hot Pluggable
- Links up to 100 m using OM3 fiber and 150 m using OM4 fiber
- 0 to 70° C case temperature operating range
- 3.3 V power supply only
- Low power dissipation of < 3 W
- Proven High Reliability 850 nm technology: F-tone VCSEL array transmitter and F-tone PIN array receiver
- Two Wire Serial (TWS) interface with maskable interrupt for expanded functionality including:
- Individual channel functions: channel/output disable, squelch disable, and lane polarity inversion
- Diagnostic Monitoring functions: module temperature and supply voltages, per channel laser current and laser power, and input receiver power
- Status per channel: Tx fault, electrical (transmitter) and optical (receiver) LOS, and alarm flags
- Utilizes a standard 24 lane optical fiber with MTP® (MPO) optical connector for high density and thin, light-weight cable management
Applications [-]
- 100 GbE and IB-QDR / IB-DDR / IB-SDR interconnects
- Data Aggregation, Backplane and Proprietary Protocol and Density Applications
- Datacom/Telecom switch & router connections
Documents [-]
Data Sheets & Technical Specifications
- Data Sheet - Parallel-fiber-83PDZ, 12Channel x 10.3125Gbps Transceiver CXP Pluggable, Parallel Fiber-Optics Module (1054 KB,PDF)
- Product Brief - Parallel-fiber-83PDZ, 12Channel x 10.3125Gbps Transceiver CXP Pluggable, Parallel Fiber-Optics Module (194 KB,PDF)
Application Notes
- Application Note - AN 5562; Reference Design and Interoperability Report. Vitesse VSC7227 12-Channel 14 Gbps Multirate Adaptive Channel Extender and F-tone Parallel-fiber-83PDZ 12 x 10.3125 Gbps CXP Optical Transceiver (2070 KB,PDF)
