1064 SLD光源

1064 SLD光源

0.0/5 rating (0 votes)

Description

产品简介
北亿纤通研制的1064nm SLD光源具有高光功率输出、低噪声、宽光谱、长寿命等优点。该系列产品采用10PIN蝶形管壳封装,内置半导体制冷器,适合测量仪器、光纤激光器等应用。
应用领域
测量
光纤激光器种子源
技术参数
参数 符号 最低值 典型值 最大值 单位
脉冲输出峰值功率 Ppulse 1000 mW
脉冲电流峰值(500ns, 1%占空比) Ipulse 1600 1800 mA
脉冲峰值波长(500ns, 1%占空比) λpulse 1050 1060 1070 nm
脉冲宽度 PW 5 500 ns
工作频率 F 500 kHz
占空比 DC 10 %
峰值光谱半高宽度 FWHMpluse 15 nm
连续输出光功率 Pout 300 mW
连续工作电流 Iop 750 1500 mA
连续输出波长 λcw λpulse nm
连续输出光谱宽度 FWHMcw 15 nm
工作温度 To 0 75
存储温度 Ts -40 80

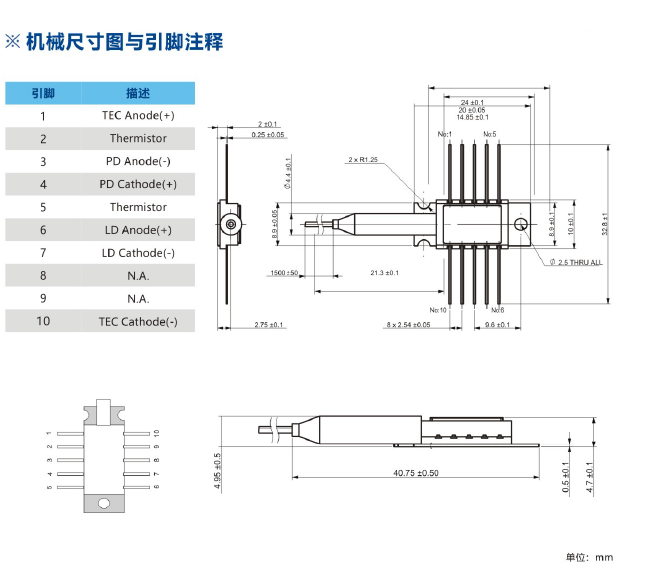

外形尺寸56













Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
