cameralink工业相机线缆

北亿纤通专业研发生产:cameralink线缆,cameralink工业相机线缆,cameralink工业线缆,cameralink工业相机线缆生产厂家,cameralink线缆价格,全系列cameralink工业相机线缆,cameralink线缆厂家,cameralink工业相机线缆厂家,cameralink工业线缆厂家,海量交付给国防、军工、航空、航天、兵器、舰船、雷达、电子、核工业、军事、电力、铁路、医疗、交通、通信、电信、政府、国防科技工业系统内大专院校及科研院所

CFP 100G Passive Electrical Loopback is used for testing CFP 100G  transceiver ports in board level test. By substituting for a full-featured CFP transceiver, the electrical loopback provides a cost effective low loss method for CFP 100G port testing. The CFP-100G-loopback is packaged in a standard MSA housing compatible with all CFP ports.

CFP 100GBASE-SR10 / OTU4 Parallel Optical Module:Designed to support the IEEE 100GBASE-SR10 link specification; the newly developed F-tone 100G CFP transceiver provides increased port density and total system cost savings. The F-tone CFP module has a single MPO port which connects to an industry standard 2x12 multi-mode fiber cable. One 2x12 multi-mode optical fiber cable terminated with MPO optical connectors connects two CFP modules.

F-tone CFP-40G-10KM, CFP-40G-20KM, CFP-40G-40KM 40G CFP transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA1 and IEEE 802.3ba 40GBASE-LR4, 40GBASE-ER4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA.

CFP Single 40GBASE-SR4 / OTU3 Parallel Optical Module: pictureThe F-toneSingle port 40 Gbps short reach Ethernet CFP transceiver module provides significant system cost and power savings while maintaining form factor compatibility with longer reach optics. The F-tone40GE CFP module is compliant to the CFP MSA standard as well as the IEEE 802.3ba specification for 40GBASE-SR4 links.

The F-tone CFP to SFP+ converter CFP-40G-PCT is supported on 40 Gigabit Ethernet CFP ports of switches and routers, converting them into 10 Gigabit Ethernet SFP+ ports.

• Transmission data rate up to 11.2Gbit/s per channel
• CFP MSA compliant
• Compliant to IEEE 802.3ba specification for 100GBASE-SR10 links
• Up to 11.2 Gbps per channel bandwidth,
• OTU4 compatible
• 10 channels 850nm VCSEL array
• 10 channels PIN photo detector array
• OM3 Multimode Fiber cable of up to 300m and OM4 Multimode Fiber cable of up to 400m
• MDIO digital diagnostic and control capabilities.
• compliant to CFP MSA Management Interface Specification, Draft 1.4
• TX input and RX output CDR retiming
• Hot pluggable electrical interface
• Power class 1 (<8W max)
• Operating case temperature 0°C to +70°C
• 3.3V power supply
• RoHS 6 compliant(lead free)

• Transmission data rate up to 11.2Gbit/s per channel
• CFP MSA compliant
• Compliant to IEEE 802.3ba specification for 40GBASE-SR4 links
• Up to 11.2 Gbps per channel bandwidth,
• OTU3 compatible
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• OM3 Multimode Fiber cable of up to 300m and OM4 Multimode Fiber cable of up to 400m
• MDIO digital diagnostic and control capabilities.
• compliant to CFP MSA Management Interface Specification, Draft 1.4
• TX input and RX output CDR retiming
• Hot pluggable electrical interface
• Power class 1 (<8W max)
• Operating case temperature 0°C to +70°C
• 3.3V power supply
• RoHS 6 compliant（lead free）

CFP2 Pluggable EDFA

北亿纤通自主研发生产CFP2 Pluggable EDFA光模块，已海量交付给工厂自动化、电力、能源、太阳能、风电、水电、火电、核电、国防、军工、航空、航天、兵器、舰船、雷达、电子、核工业、军事、铁路、医疗、交通、通信、电信、政府、信创、国防科技工业系统内大专院校及科研院所

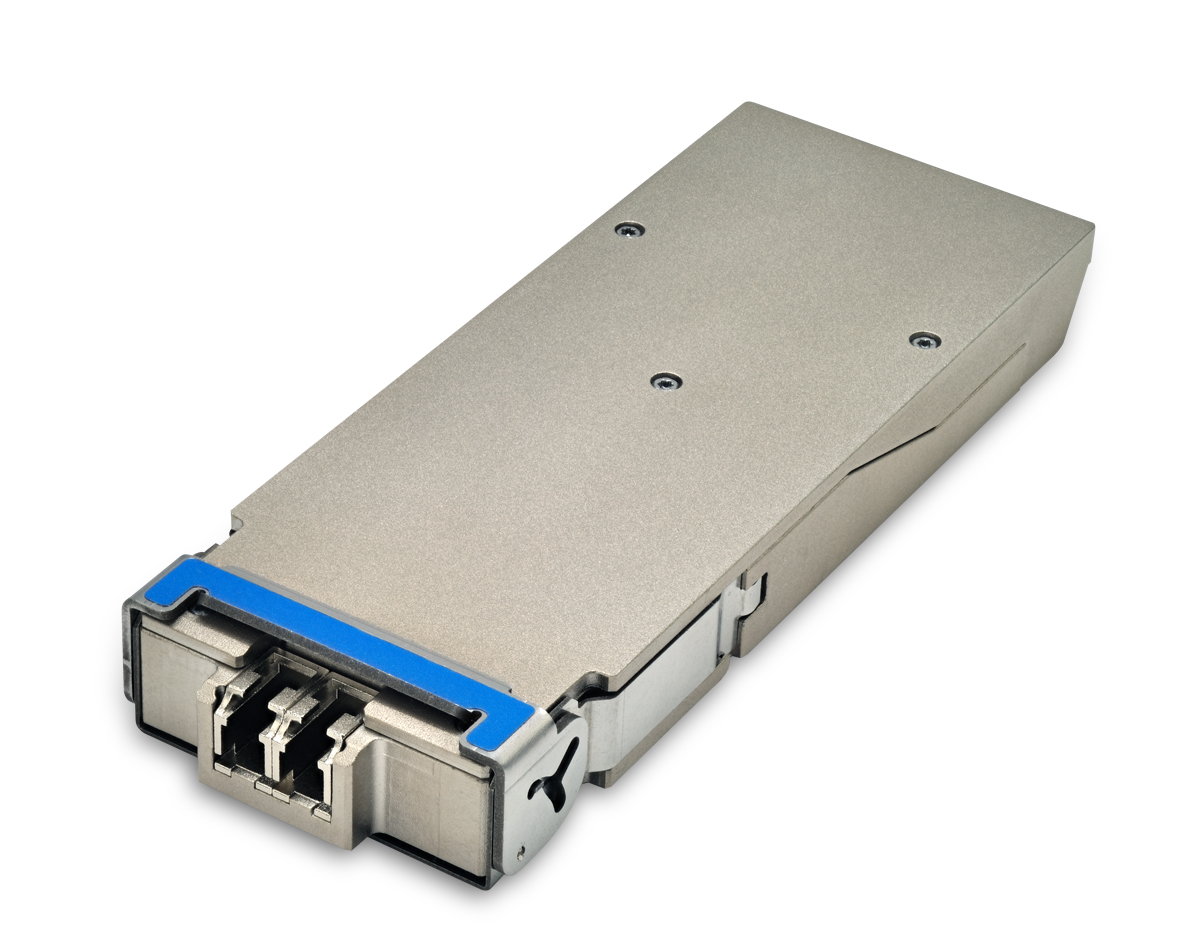

CFP2-100G-SR10 CFP2, 850 nm, 3.3 V, 100GBASE-SR10 Compliant Pluggable Ethernet Optical Transceiver

This CFP Multi-Source Agreement (MSA) defines the CFP4 form factor of an optical transceiver which can support  40Gbit/s and 100Gbit/s interfaces for Ethernet, ITU-T OTN and other applications. Specifications provided in this document are given as a “delta” to the CFP MSA Hardware Specification Rev.1.4 or the CFP2 Hardware Specification Rev. 1.0.

CFP4-100G-SR4：F-tone Networks’s 100Gb/s transceiver module for optical communication applications compliant to 100GBASE-SR4 of the IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of VCSEL optical signals over 4 multimode fibers for 100Gb/s optical transmission. Reversely, on the receiver side, the module receives 4 channels of VCSEL optical signals over 4 multimode fibers and then converts them to 4 output channels of electrical data.The high speed VCSEL transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 100m links over OM4 multimode fibers and compliant to optical interface with IEEE802.3bm Clause 95 100GBASE-SR4 requirements.

CLASS B+ 2488/1244Mb/s With Digital RSSI Function SFP GPON OLT Transceiver

It is based on the ITU-T G.984.2 Class B+ specifications for bidirectional communications over a single fiber and incorporates a high performance 1310nm Burst Mode APD/TIA receiver and 1490nm CW mode DFB transmitter with internal optical isolator.

CLIPPER Series

Key features and benefits
● UL94V0
● REACH
● RoHS
● Sealing: IP67/ IP68 / IP69K

Coherent CFP2-ACO 100G/200G Transceiver：The 100Gb/s coherent CFP2 pluggable transceiver, enabled by F-tone Networks’s industry leading InP technology, represents the next generation of high performance optical modules designed for a variety of DWDM lineside applications. The analog coherent CFP2 module offers significant advantages over existing solutions in terms of reduced power dissipation and increased density with the added benefit of pluggability for reduced first installed cost.

Compatible SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable), 1m, 100PCS

● 10GBase-CR, SFP+ Twinax Cable
● Passive, AWG30

Copper SFP

F-tone Networks 10GBASE-T, 1000BASE-T or 100BASE-T or 10/100/1000BASE-T Auto Negotiation can be installed into optical SFP slots enabling an optical Ethernet port to be converted into a copper Ethernet port either in the field or in production.

CSFP 1.25G 10km
1.25G CSFP transceiver modules are designed for use in 1.25 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the CSFP MSA, IEEE 802.3z.The optical transceiver is RoHS compliant.

F-tone CWDM SFP+  transceiver is small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW/ER/ZR. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength.
