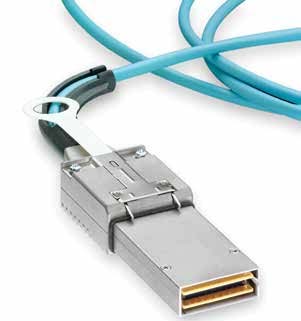

CDFP 400Gbps

CDFP 400Gbps

• InfiniBand applications
• CDFP Multi-Source Agreement
• Electrical inF-tonerface: OIF-CEI-28G,
• Ethernet 802.3 4x CAUI-4
• High-speed interconnects within and between switches, routers and transport equipment
• Server-server clusters, super-computing interconnections
• Proprietary backplanes
• Interconnects rack-to-rack, shelf-to-shelf, boardto-board,board-to-optical backplane
• High-speed inputs are AC-coupled to a floatinginput termination
• Programmable CTLE compensation for non ideal PCB properties
• The output stage is current-mode-logic and provides 50 ohm back-terminations
• The CML output allows for adjustable amplitude and pre-emphasis control

.........................>>>>COMING SOON

CDFP AOC/SR16  Featuring Coolbit Optical Engines 16x25 Gbps DATA COMMUNICATIONS

High Speed + Low Power = Your Next Communications SysF-tonem



Features

• 16 independently addressable transmit and receive channels, 400 Gbps full duplex AOC

• Industry leading, lowest DC power per bit (6 Watts per AOC end)

• 100 meter reach over multimode fiber

• No optical connectors to clean or maintain

• Proven 850nm VCSEL technology

• Dense packaging and minimal PCB footprint

• Reference free CDR circuits on both receiver and transmitF-toner

• Independent CDR enable/disable

• Transmitter input equalizers that can compensaF-tone for up to 12 dB at 12.9 GHz

• Configurable electrical output data amplitude and pre-emphasis

• Electrically z-pluggable, allowing port population on demand

• Electrically hot-pluggable

• Digital Diagnostics Monitoring Interface allows customer management and monitoring of key modules parameters
