Components for Fiber sensing

Components for Fiber sensing
ln-line polarier   polarizer
Farady Rotator Mirror
Tunable Filter

Delay  line

PBS/PBC

Coupler/splitter

Patchcord

北亿纤通专业研发Components for Fiber sensing,ln-line polarier   polarizer,Farady Rotator Mirror,Tunable Filter,Delay  line,PBS/PBC,Coupler/splitter,Patchcord

FT   1064nm Isolator PBC/PBS

1064nm Isolator PBC/PBS

 1064nm Isolator PBC/PBS

The 1064nm Isolator Polarization Beam Combiner/Splitter is a compact device which provides both polarization beam combining and optical isolation function in one integrated device. The most common application is to combine the light of two pump lasers into a single fiber to double the pump power.

FT  2000 nm Faraday Rotator Mirror

2000 nm Faraday Rotator Mirror

 2000 nm Faraday Rotator Mirror

The Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The FM offers excellent performance including the lowest possible insertion loss and enviromental stability. It is used in EDFAs, fiber lasers and fiber instruments to mininize the polarization effect.

FT  2W 1064nm PM Isolator, CW or Pulsed, 1.0 μm Fiber Laser

2W 1064nm PM Isolator, CW or Pulsed, 1.0 μm Fiber Laser

 2W 1064nm PM Isolator, CW or Pulsed, 1.0 μm Fiber Laser

The 1064nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrument applications.

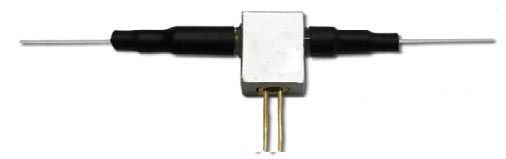

FT  Integrated Tap Photodiode Isolator

Integrated Tap Photodiode Isolator

Integrated Tap Photodiode Isolator

The Integrated Tap Photodiode Isolator (TPDI) integrates the functionality of a miniature polarization insensitive isolator with a tap photodiode for power monitoring in one package. The product provides a more compact solution in EDFA or other modules where both Isolator and monitoring function are needed.

FT  1550 nm Low Wavelength and Temperature Dependent Faraday Mirror

1550 nm Low Wavelength and Temperature Dependent Faraday Mirror

1550 nm Low Wavelength and Temperature Dependent Faraday Mirror

The Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The LFM Series offers more excellent performance in rotation angle of all polarization state  than the normal FM Series and also has the lowest possible insertion loss and enviromental stability. It is used in EDFAs, fiber lasers and fiber instruments to mininize the polarization effect.

FT  2000nm Faraday Rotator Mirror (FM/FR), 2.0μm Fiber Laser

2000nm Faraday Rotator Mirror (FM/FR), 2.0μm Fiber Laser

2000nm Faraday Rotator Mirror (FM/FR), 2.0μm Fiber Laser

The Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The FM offers excellent performance including the lowest possible insertion loss and enviromental stability. It is used in EDFAs, fiber lasers and fiber instruments to mininize the polarization effect.

FT Faraday Mirror

Faraday Mirror

Faraday Mirror

The Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The FM offers excellent performance including the lowest possible insertion loss and enviromental stability. It is used in EDFAs, fiber lasers and fiber instruments to mininize the polarization effect.

FT  PM Faraday Mirror

PM Faraday Mirror

PM Faraday Mirror

The Polarization Maintaining Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The PMFM offers excellent performance including the lowest possible insertion loss and enviromental stability. It is used in amplifiers, fiber lasers and fiber instruments to minimize the polarization effect.

FT    Singlemode Filter WDM (980/1064)

Singlemode Filter WDM (980/1064)

Singlemode Filter WDM (980/1064)

The Filter Wavelength Division Multiplexer is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality FT  coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.

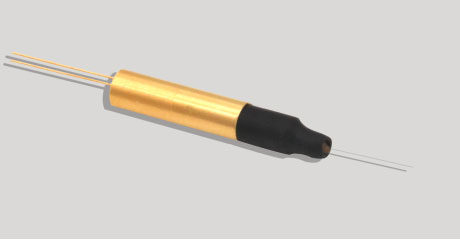

FT Unidirectional Integrated Tap Photodiode (UTPD)

Unidirectional Integrated Tap Photodiode (UTPD)

Unidirectional Integrated Tap Photodiode (UTPD)

The Unidirectional Integrated Tap Photodiode (UTPD) integrates the functionality of an optical coupler and a photodiode for optical network's power monitoring. The unidirectional feature allows the PD to respond power from input port only. It can be applied for channel power monitoring in DWDM system, optical fiber line auto switch protection equipment (OLP), re-configurable optical add/drop multiplexer (OADM), and gain/attenuation monitoring in EDFA, etc.
