CFP2 Transceiver

CFP 40G Transceiver

0.0/5 rating (0 votes)

Specifications

  • 产品型号: CFP 40G Transceiver
  • 兼容品牌: 全系列
  • 封装类型: CFP
  • 传输速率: 40G
  • 传输距离: Up to 40km transmission
  • 发射波长: CWDM
  • 接收波长: CWDM
  • 工作温度: 商业级0℃~+70℃/工业级-40℃~+85℃ 可选
  • 数字诊断: 带DDM
  • 接收灵敏度: Up to 40km transmission
  • 接收灵敏度: Up to 40km transmission

Description

CFP 40G Transceiver

F-tone CFP-1640G-10, CFP-1640G-20, CFP-1640G-40 40G CFP transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA1 and IEEE 802.3ba 40GBASE-LR4, 40GBASE-ER4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.

CFP-1640G-10 Series    CFP LR4 / CFP 40G LR4 / CFP-40G-LR4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 10km.

CFP-1640G-20 Series    CFP LR4 / CFP 40G LR4 /CFP-40G-LR4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 20km.

CFP-1640G-40 Series    CFPER4 / CFP 40G ER4 /CFP-40G-ER4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.

Features:

  • Supports 41.2Gbps aggregate bit rates
  • CWDM DFB laser and PIN receiver
  • Up to 10km, 20km, 40km transmission on SMF
  • Single 3.3V Power Supply and Power dissipation <8W
  • Hot-Pluggable CFP Footprint Duplex LC Connector Interface
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • Operating Case Temperature Standard: 0C~+70C
  • Compliant with CFP MSA Specification
  • MDIO interface with integrated Digital Diagnostic Monitoring
  • XLAUI electrical interface

Application:

  • 40GBASE-LR4 Ethernet
  • 40GBASE-ER4 Ethernet

Ordering information:

Package Part No. Aggregate Data Rate Wavelength Optical Components Distance Connector Case Temperature range Application
CFP CFP-1640G-10 40G 1270nm~1330nm DFB/PIN 10km 45° LC 0~70 40GBASE-LR4
CFP CFP-1640G-20 40G 1270nm~1330nm DFB/PIN 20km 45° LC 0~70 40GBASE-LR4
CFP CFP-1640G-40 40G 1270nm~1330nm DFB/APD 40km 45° LC 0~70 40GBASE-ER4

CFP 40G Wiki

The first-generation 40GBase-LR4 optical transceiver is based on a 4x10G architecture that comprises the following discrete components:

  •     10G CWDM 1310nm uncooled directly modulated distributed feedback (DM-DFB) transmit optical subassemblies (TOSAs)
  •     10G PIN photodiode (PD) with integrated transimpedance amplifier (TIA)
  •     Receive optical subassemblies (ROSAs)
  •     Four-channel optical multiplexing/de-multiplexing filters
  •     Quad dual-channel clock/data recovery (CDR) IC. The quad CDR IC provides the XLAUI 4x10G electrical interface defined in the IEEE Std 802.3ba-2010 specification

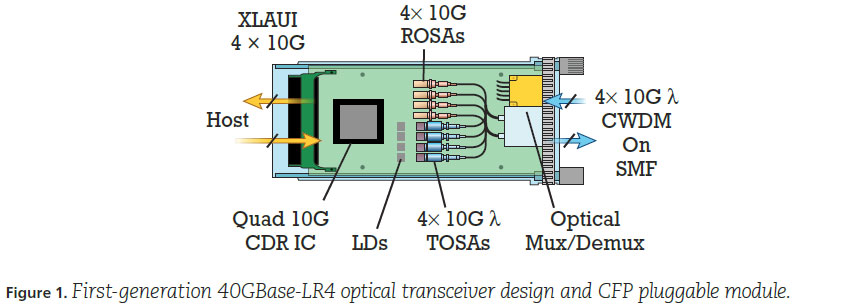

These components are packaged into the pluggable CFP module; the module’s mechanical, electrical, and management interface specifications are given in the recently completed CFP MSA rev. 1.4, as shown in figure 1 below.

cfp-40g-inside

40GBASE-SR4 ("short range") is a port type for multi-mode fiber and uses 850 nm lasers. Its Physical Coding Sublayer 64b/66b PCS is defined in IEEE 802.3 Clause 82 and its Physical Medium Dependent PMD in Clause 86. It uses four lanes of multi-mode fiber delivering serialized data at a rate of 10.3125 Gbit/s per lane. 40GBASE-SR4 has a reach of 100m on OM3 and 150m on OM4. There is a longer range variant 40GBASE-eSR4 with a reach of 300m on OM3 and 400m on OM4. This extended reach is equivalent to the reach of 10GBASE-SR. 40GBASE-LR4

40GBASE-LR4 ("long range") is a port type for single-mode fiber and uses 1300 nm lasers. Its Physical Coding Sublayer 64b/66b PCS is defined in IEEE 802.3 Clause 82 and its Physical Medium Dependent PMD in Clause 87. It uses four wavelengths delivering serialized data at a rate of 10.3125 Gbit/s per wavelength.

40GBASE-ER4 ("extended range") is a port type for single-mode fiber being defined in P802.3bm and uses 1300 nm lasers. Its Physical Coding Sublayer 64b/66b PCS is defined in IEEE 802.3 Clause 82 and its Physical Medium Dependent PMD in Clause 87. It uses four wavelengths delivering serialized data at a rate of 10.3125 Gbit/s per wavelength



Tx&Senesetivity CFP 40G

Parameter Symbol Min. Typical Max. Unit
9µm Core Diameter SMF L     10 km
Aggregate Bit Rate BRAVE   41.25   Gbps
Lane Bit Rate BRLANE   10.3125   Gbps
Transmitter
Lane_0 Center Wavelength λC0 1264.5 1271 1277.5 nm
Lane_1 Center Wavelength λC1 1284.5 1291 1297.5 nm
Lane_2 Center Wavelength λC2 1304.5 1311 1317.5 nm
Lane_3 Center Wavelength λC3 1324.5 1331 1337.5 nm
Side Mode Suppression Ratio SMSR 30     dB
Total Average Output Power*(Note4) Po -   8.3 dBm
Transmit OMA per Lane, 10km TX_OMA -4   3.5 dBm
Average Launch Power per Lane, 10km Peach -7   2.3 dBm
Transmit OMA per Lane, 20km TX_OMA -4   3.5 dBm
Total Average Output Power 20km *(Note4) Po 6   10 dBm
Transmit OMA per Lane,40km TX_OMA -1   4 dBm
Average Launch Power per Lane, 40km Peach -3   2.3 dBm
Extinction Ratio 10-20km *(Note5) ER 3.5     dB
Extinction Ratio 40km *(Note5) ER 4.5     dB
Optical Return Loss Tolerance       20 dB
Output Optical Eye*(Note8) IEEE 802.3ba-2010 Compliant
TX Disable Assert Time t_off     100 us
Receiver
Lane_0 Center Wavelength λC0 1264.5 1271 1277.5 nm
Lane_1 Center Wavelength λC1 1284.5 1291 1297.5 nm
Lane_2 Center Wavelength λC2 1304.5 1311 1317.5 nm
Lane_3 Center Wavelength λC3 1324.5 1331 1337.5 nm
10-20km
Average Receive Power per Lane Rpow -13.7   2.3 dBm
Stress Receive Sensitivity in OMA per Lane*(Note7) SRS     -9.6 dBm
Receive Sensitivity in OMA per Lane*(Note7) Pmin     -11.5 dBm
Receiver Overload Pmax 2.3     dBm
Optical Return Loss ORL     -26 dB
LOS Assert LOSA -25     dBm
LOS De-Assert LOSD     -11.5 dBm
LOS Hysteresis*(Note9)   0.5     dB
40km
Average Receive Power per Lane Rpow -21   -6 dBm
Stress Receive Sensitivity in OMA per Lane*(Note7) SRS     -19 dBm
Receive Sensitivity in OMA per Lane*(Note7) Pmin     -21 dBm
Receiver Overload Pmax -6     dBm
LOS Assert LOSA -30     dBm
LOS De-Assert LOSD     -24 dBm
LOS Hysteresis*(Note9)   0.5     dB
LOS Hysteresis*(Note9)   0.5     dB

For most updated spec please refer to pdf
