CWDM SFP+

CWDM 10G SFP+ Transceiver

5.0/5 rating 1 vote

Specifications

  • 产品型号: CWDM-SFP10G-XXX
  • 兼容品牌: 全系列
  • 封装类型: SFP+
  • 传输速率: 10.5 Gb/s
  • 传输距离: Power Budget up to 10dB, 14dB, 16dB, 23dB
  • 发射波长: CWDM
  • 接收波长: CWDM
  • 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
  • 数字诊断: 带DDM
  • 接收灵敏度: Power Budget up to 10dB, 14dB, 16dB, 23 dB
  • 接收灵敏度: Power Budget up to 10dB, 14dB, 16dB, 23 dB

Description

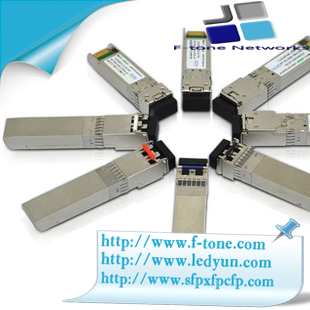

F-tone CWDM SFP+  transceiver is small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW/ER/ZR. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. A guaranteed minimum optical link budget of 14 dB is offered. The transmitter section uses a CWDM multiple quantum well DFB/EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

SFP-10G-CWDM-DWDMBIDI CWDM SFP+ special CWDM SFP+, TX and RX with the same wavelength. It comes with pigtail LC/APC or SC/APC coming out from the transceiver port. AT present available waves 1270-1330, if you need other waves, please, contact with us.

Features:

  • Up to 10.5 Gb/s Bi-directional Data Links
  • Can be used with single fiber CWDM system or dual fiber CWDM system
  • 10Gb Ethernet
  • 2G/4G/8G/10G Fibre Channel compliance
  • Complaint to SFP+ MSA
  • Compliant to IEEE 802.3ae 10GBASE
  • Maximum Link Length of 80 km at 10.3125Gb/s
  • Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270 nm to 1610 nm
  • Power Budget up to 10dB, 14dB, 16dB, 23 dB
  • SFF-8472 Digital Diagnostic Function
  • AC/AC Coupling according to MSA
  • Single +3.3 V Power Supply
  • RoHS 6/6 Compliant
  • Class 1 Laser International Safety Standard IEC-60825 Compliant

Ordering information:

Package Part No. Fiber Type Data Rate Range Wavelength Optical Components Distance Range Case Temperature range Application
CWDM SFP+ LR, CWDM SFP+ ER, CWDM SFP+ ZR, BIDI CWDM SFP+ LR:
BIDI SFP+ FTCS-BI1696-S-9XPL SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/PIN 9dB 0~70
SFP+ FTCS-1696-10X SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/PIN 10dB 0~70 Eth,10GFC
SFP+ FTCS-1696-14X SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/PIN 14dB 0~70 Eth,10GFC
SFP+ FTCS-1696-23X SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/APD 23dB 0~70 Eth,10GFC
SFP+ FTCS-1696-10X SMF 9.95~11.1G 1350~1610nm DFB/PIN 10dB 0~70 Eth,10GFC
SFP+ FTCS-1696-14XN SMF 9.95~11.1G 1470~1610nm EML/PIN 14dB 0~70 Eth,10GFC
SFP+ FTCS-1696-23XN SMF 9.95~11.1G 1470~1610nm EML/APD 23dB 0~70 Eth,10GFC
SDH SONET CWDM SFP+ with CDR:
SFP+ FTCS-1696-10XR SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/PIN 10dB 0~70 Eth,SDH,10GFC
SFP+ FTCS-1696-14XR SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/PIN 14dB 0~70 Eth,SDH,10GFC
SFP+ FTCS-1696-23XR SMF 9.95~11.1G 1270/1290/1310/1330nm DFB/APD 23dB 0~70 Eth,SDH,10GFC
SFP+ FTCS-1696-10XR SMF 9.95~11.1G 1350~1610nm DFB/PIN 10dB 0~70 Eth,SDH,10GFC
SFP+ FTCS-1696-14XR SMF 9.95~11.1G 1470~1610nm EML/PIN 14dB 0~70 Eth,SDH,10GFC
SFP+ FTCS-1696-23XR SMF 9.95~11.1G 1470~1610nm EML/APD 23dB 0~70 Eth,SDH,10GFC
8G Fiber Channel CWDM SFP+:
SFP+ FTCS-1680-10X SMF 8G CWDM DFB/PIN 10dB 0~70 8xFC
SFP+ FTCS-1680-14X SMF 8G CWDM DFB/PIN 14dB 0~70 8xFC
SFP+ FTCS-1680-23X SMF 8G CWDM DFB/APD 23dB 0~70 8xFC
CWDM CPRI OBSAI SFP
SFP+ FTCS-1660-10X SMF up to 6.144G CWDM DFB/PIN 10dB 0~70 LTE,CPRI,OBSAI
SFP+ FTCS-1660-14X SMF up to 6.144G CWDM DFB/PIN 14dB 0~70 LTE,CPRI,OBSAI
SFP+ FTCS-1660-23 SMF up to 6.144G CWDM EML/APD 23dB 0~70 LTE,CPRI,OBSAI
SFP+ FTCS-1660-22X SMF up to 6.144G 1270/1290/1310/1330nm DFB/APD 22dB 0~70 LTE,CPRI,OBSAI
