YL24系列圆形连接器

YL24型推拉式圆形电连接器,其连接方式为推入式锁紧块锁紧,该连接器具有插拔迅速,使用方便,体积小,密度高,耐环境好,外形美观,屏蔽性好等特点。产品主要用于仪表、电子设备等的直流或交流电路中的电气连接。

主要技术指标:
● 工作温度: -55~＋125℃
● 相温湿度: 90%～95%(40±2℃)
● 工作气压: 4.39KPa～101.33KPa
● 盐雾: 5﹪NaC1雾气中的48h
密封性:
● 插座: 压差1.01×105Pa,历时1min无气泡漏泄
● 头座插合: 1m水深0.5h不渗水
● 振动: 10～2000Hz,147m/s²,瞬间
● 冲击: 490m/s²,瞬断
● 机械寿命: 1000次
● 绝缘电阻: ≥3000mΩ
● 工作电流: 3A（22#）,5A(20#)
● 接触电阻: 12.5mΩ（22#）,5A(20#)
● 工作电压: 400V
● 耐电压: 1000V
● 外壳间电连续性: 5mΩ

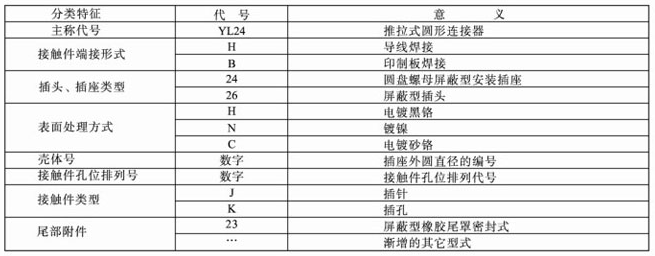

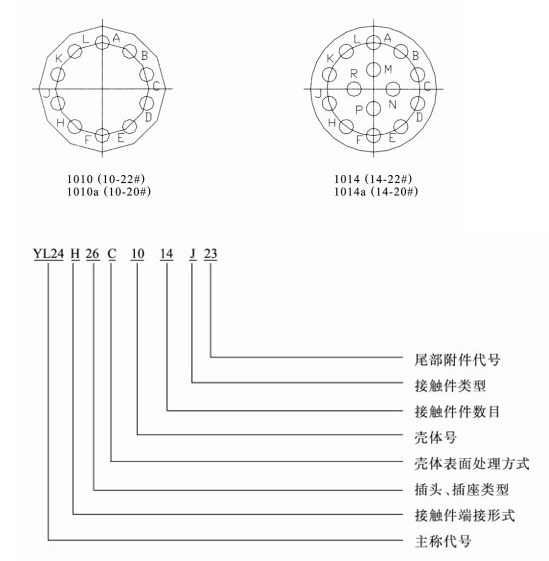

 绝缘安装板孔位排列（从插针焊线端看绝缘体孔位）

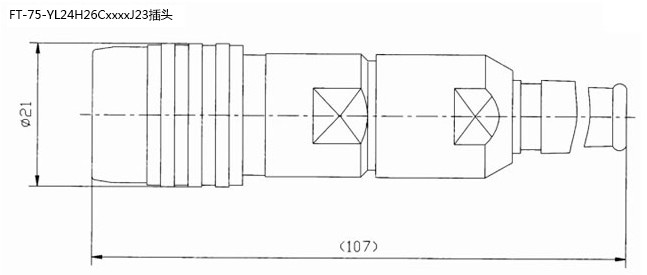

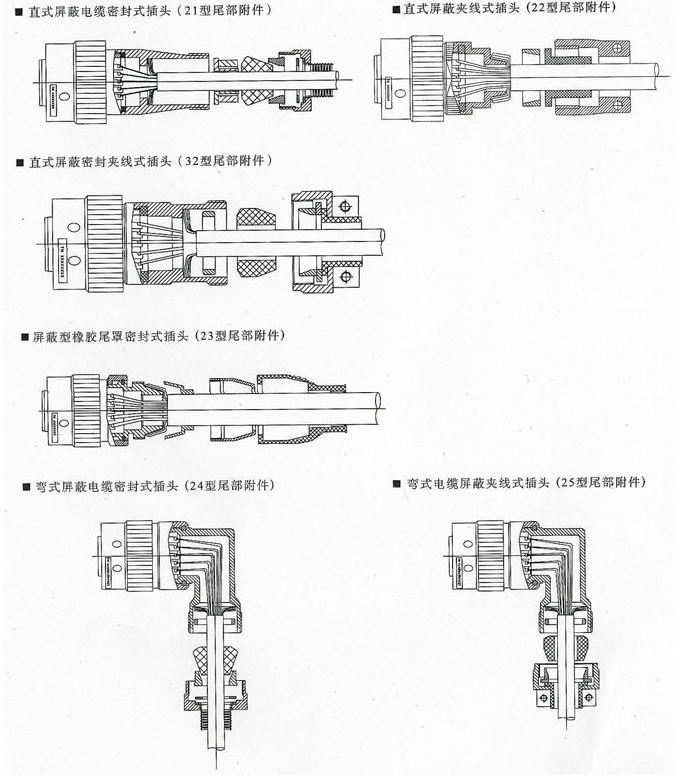

外形及安装尺寸:

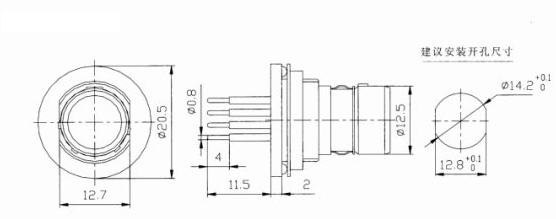

 YL24H24CxxxxK插座

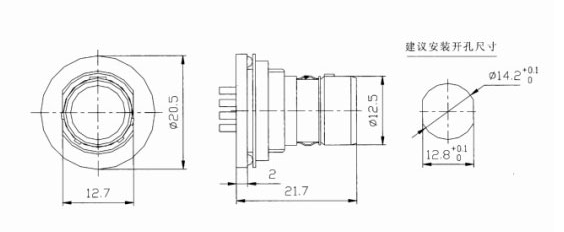

YL24B24CxxxxK插座

注意事项:

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
