YP圆形电连接器

本系列产品根据用户的需求而开发,集Y2系列与P型电连接器的优点和功能,具有Y2的卡口式连接结构,采用P型连接器的接触件排列型谱。该系列产品体积小,重量轻,节点型谱广,快速分离之特点。

主要技术技能
环境性能:
● 工作温度: 焊接式 -55℃~125℃、压接式-55℃~200℃
● 相对温度: 40℃时达95%
● 工作高度: 海拔20000m
● 振动: 频率10Hz~2000Hz 加速度147m/s²
● 冲击: 加速度490/s²
● 恒加速度: 490m/s²
● 气密性: 耐气压0.2MPa(仅密封性插座)

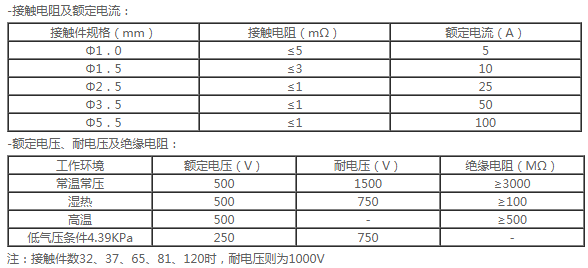

 电气性能:

压接式针孔轴向负荷参照Y2系列
接触件压接筒内直径与适配导线截面参照Y2系列

机械性能:
● 壳体: 铝合金铸造件
● 镀层: 镀砂镍、喷漆
● 绝缘体: 耐热热塑性或热固性材料
● 接触件: 铜合金材料 镀层 金
● 机械寿命: 500次

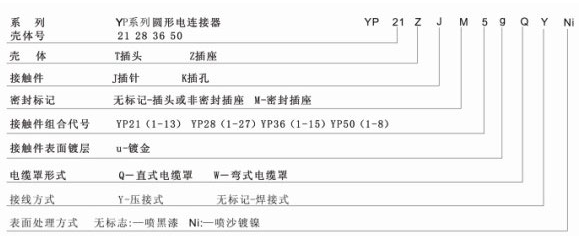

标记、代号及意义:

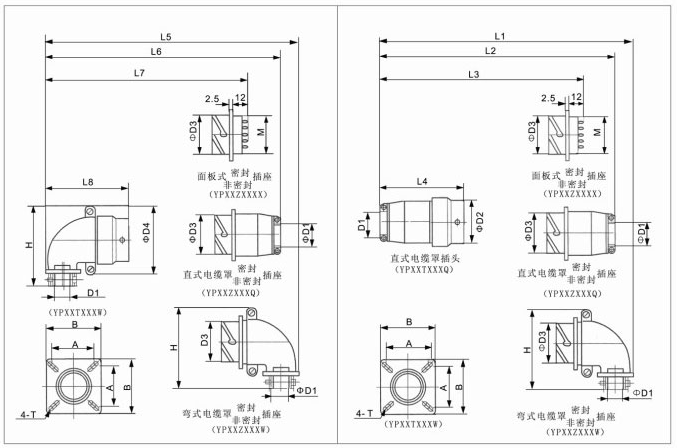

外形及安装尺寸:

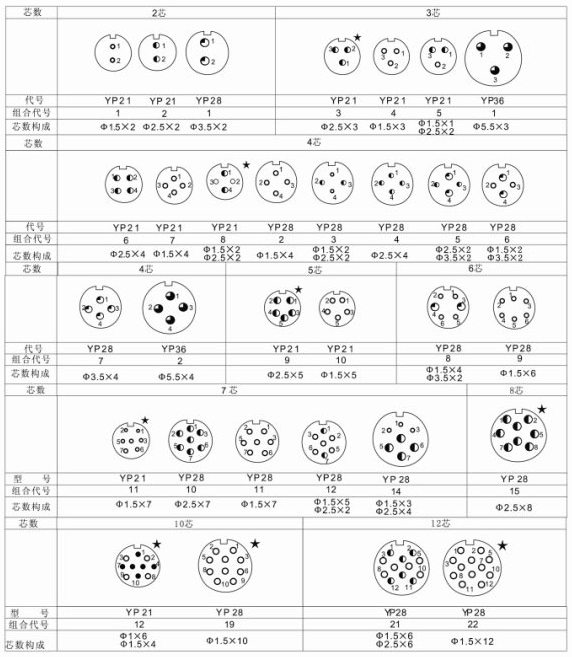

YP接点型谱图（★号为压接式型谱）:

 YP接点型谱图（★号为压接式型谱）:
