DAS系统一体化模块

DAS系统一体化模块

0.0/5 rating (0 votes)

Description

产品简介
本系统是在北亿纤通高功性能窄线宽模块基础上开发的分布式光纤声音传感一体化模块。该模块可对高铁轮轨结构、高压输电线路、周界安防入侵,地质灾害预警及油气和热力管线泄漏检测,检测长度高达60KM。

技术参数
参数 符号 最低值 典型值 最大值 单位
脉冲宽度 △τ 20 ns
输出峰值功率 Out1 10 W
平均功率 Out2 1.5 mW
VOA衰减范围 0 40 dB
工作电流 IB 0.9 A
工作电压 VF 12 V
工作温度 To 0 25 60
存储温度 Ts -20 25 70
预热时间 5 min
通讯方式 Rs232
串口可调器件 EDFA/VOA/AOM
光纤端口 FC/APC
输出类型 BPD差分RF
光源参数
中心波长 λc 1550.12 nm
光谱线宽 FWHM 15 kHz
边模抑制比 SMSR 40 dB
相对强度噪声 RIN -140 dB/Hz
消光比 60 dB
峰值功率 0.5 kW
脉冲宽度 20 ns
脉冲频率 20 MHz
移频频率 200 MHz
上升沿时间 8 10 10 ns
BPD参数
跨阻增益 13*10³ V/W
最小等效噪声功率(NEP) 10.2 pW/Hz½
带宽 250 MHz
饱和光功率 240 μW

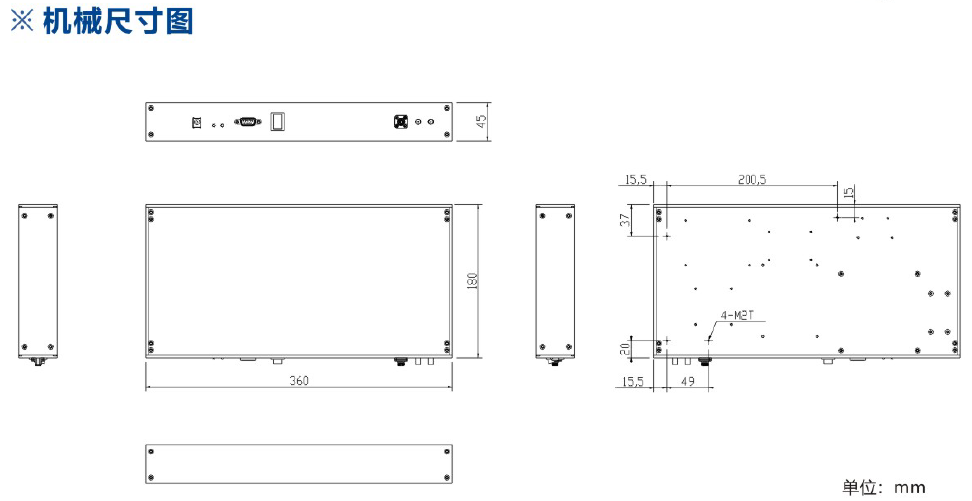

外形尺寸72
