785nm双波长窄线宽激光器

785nm双波长窄线宽激光器

0.0/5 rating (0 votes)

Description

产品简介
北亿纤通的窄线宽双波长激光器是一种基于外腔设计的激光器.该产品具有非常好的波长温度稳定性、窄谱线线宽、高边模抑制比、高输出光功率等特点。该系列产品可提供多种波长组合供用户选择,包括785/784nm、785/830nm、785/1064nm。
应用领域
● 拉曼光谱
● 传感
● 医疗
● 生物仪器
技术参数
参数 符号 最低值 典型值 最大值 单位
输出功率 Po 600 mW
中心波长 λc1* 785 785.5 786 Nm
中心波长 λc2* 784 784.5 785 Nm
光谱半高宽度 FWHM 0.10 Nm
边模抑制比 SMSR 30 35 dB
阈值电流 Ith 400 mA
工作电压 Vop 1.9 2.2 V
工作电流 Iop 1.3 1.7 A
TEC温度设定 TTEC 30
TEC电流 ITEC 2.5 A
TEC电压 VTEC 4.8 V
工作温度 To -10 25 40
存储温度 Ts -20 80
备注:*.其他波长组合包括:785/830nm、785/1064nm

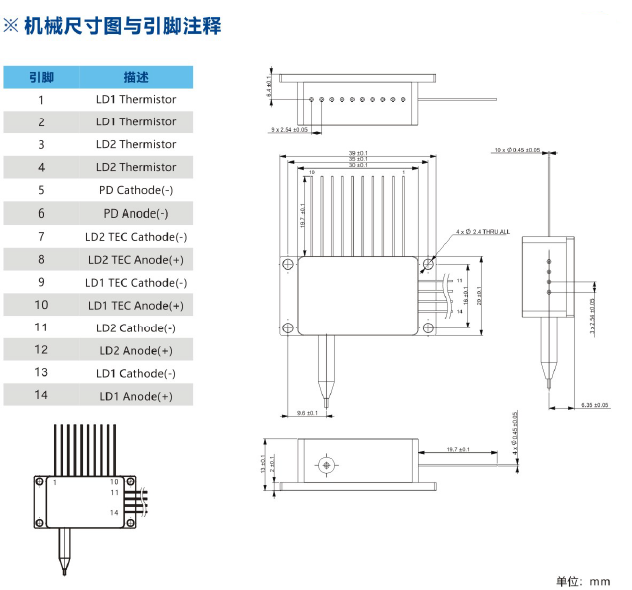

外形尺寸60







Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
