1310 SLD激光器

1310 SLD激光器

0.0/5 rating (0 votes)

Description

产品简介
北亿纤通研发的1310超辐射发光二极管(SLD)是一款针对各种光学测量应用的非相干光源,具有高亮度、宽光谱、短相干性、低强度噪声等优点。该产品非常适合光纤陀螺仪、光纤传感、光纤通信等领域的应用。

应用领域
● 光纤陀螺仪
● 光纤传感
● 光纤通信

技术参数
参数 符号 最低值 典型值 最大值 单位
输出功率 Po 500 μW
工作电流 Ic 100 mA
中心波长 λc 1290 1310 1330 nm
光谱半宽 BW 40 nm
纹波系数 Ripple 0.2 dB
偏振度(低偏) PER 1.2 dB
偏振度(高偏) PER 10 dB
工作温度 Io -45 25 70
存储温度 Ts -55 80

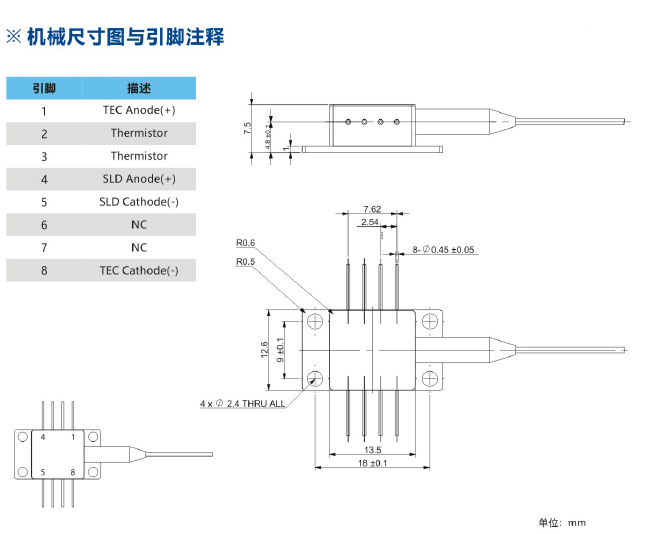

外形尺寸57






Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
