1064nm单模激光器

1064nm单模激光器

0.0/5 rating (0 votes)

Description

产品简介
北亿纤通研制的1064nm单模激光器基于外腔设计,具有非常好的波长温度稳定性、窄谱线线宽、高边模抑制比和高达150mW的光功率输出等特点。该系列激光器封装在一个14引脚的管壳里,由Bragg体光栅来实现稳定的中心波长和低温度敏感性。该产品非常适用光谱分析、传感等应用。
应用领域
● 光谱分析
● 通信
● 照明
● 传感
技术参数
参数 符号 最低值 典型值 最大值 单位
阈值电流 Ith 80 mA
脉冲输出峰值功率 Ppulse 1000 mW
脉冲电流峰值(500ns, 1%占空比) Ipulse 2000 2200 mA
脉冲峰值波长(500ns, 1%占空比) λpulse 1059 1069 nm
脉冲宽度 PW 5 500 ns
工作频率 F 500 kHz
占空比 DC 2 %
峰值光谱半高宽度 FWHMpulse 1-2 4 nm
上升/下降时间 1 ns
连续输出光功率 Pout 300 mW
连续工作电流 Iop 750 1200 mA
连续输出波长 λcw λpulse nm
连续输出光谱宽度 FWHMcw 0.5 1.0 4.0 nm
工作温度 To -25 75
存储温度 Ts -25 80

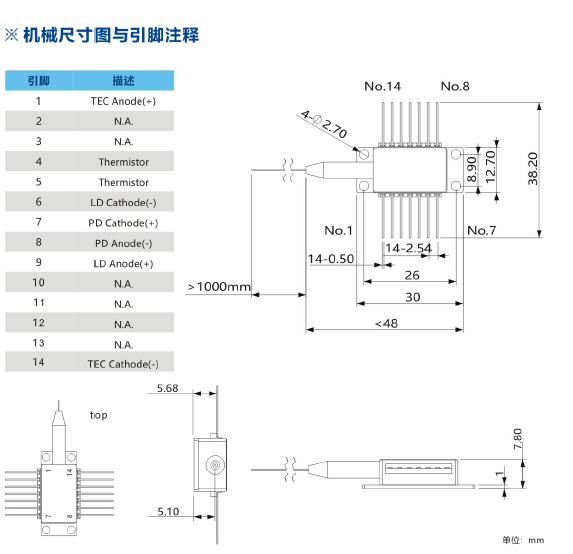

产品尺寸54






Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
