785nm窄线宽半导体激光器模块

785nm窄线宽半导体激光器模块

0.0/5 rating (0 votes)

Description

产品简介
北亿纤通的785nm激光器模块内置北亿纤通自己生产的窄线宽激光器,通过专有的电路驱动设计实现稳定快速的激光驱动。我们的激光模块体积小,固件升级灵活,具有风冷或无风冷选择、标准USB接口和TTL接口。该产品非常适用于拉曼光谱、传感、医疗以及其他测量等领域的应用。可根据客户的需求提供定制服务,并提供相应的技术支持。
应用领域
●拉曼光谱
●传感
●医疗
●生物仪器
技术参数
参数 符号 最低值 典型值 最大值 单位
输出功率* Po 500 mW
中心波长 λc 784.5 785 785.5 nm
光谱半高宽度 FWHM 0.08 0.12 nm
边模抑制比 SMSR 30 35 dB
工作电流 Icc 2 A
工作电压 Vcc 4.75 5 5.25 V
模拟调制输入信号
(TTL控制)
Mod 0 2.5 V
工作温度 To -10 25 40
储存温度 Ts -20 80

备注:*. 1、TTL控制输出功率,Po=Mod×200  (±10%)

             2、USB控制输出功率,Po=0~500   (±10%)

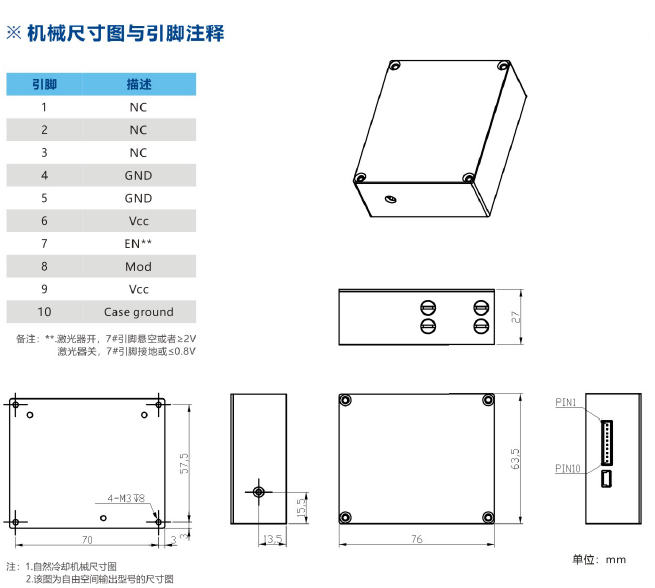

外形尺寸68











Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
