1550nm单模激光器模块(RIN)

1550nm单模激光器模块(RIN)

5.0/5 rating 1 vote

Description

产品简介
北亿纤通的1550nm激光器模块内置北亿纤通自己生产的窄线宽单频激光器,通过专有的电路驱动设计实现稳定快速的激光驱动。我们的激光模块具有体积小,固件升级灵活,标准USB接口和TTL接口等。该系列产品非常适合光纤传感、光通信、激光雷达和高精度测量等应用。我们可根据用户的需求提供定制服务,并提供相应的技术支持。
应用领域
● 光纤传感
● 激光雷达
● 光通信
● 微波光子
技术参数
参数 符号 最低值 典型值 最大值 单位
输出功率* Po 80 mW
中心波长 λc 1550/ITIU-T nm
光谱线宽 △ν 100 kHz
边模抑制比 SMSR 40 dB
消光比 PER 20 dB
相对强度噪声 RIN -160 -155 dB
工作电流 Icc 2 A
工作电压 Vcc 5 V
工作温度 To -40 25 80
储存温度 Ts -40 85

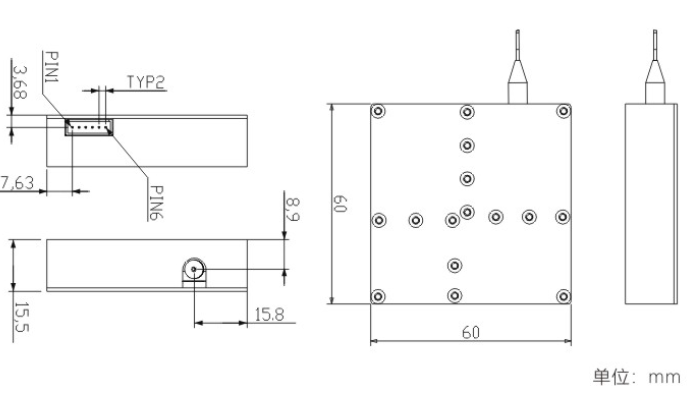

外形尺寸66











Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
