Y50DX系列圆形电连接器

产品简介
Y50DX系列电连接器符合GJB101A-1997标准,是Y50X的扩展产品,并且同一壳体号的电源系列的插头插座外形及安装尺寸可以互配。其连接方式采用卡口连接,具有快速连接和快速分离、体积小、重量轻、耐环境好等特点,适用于大电流电源系列的连接。

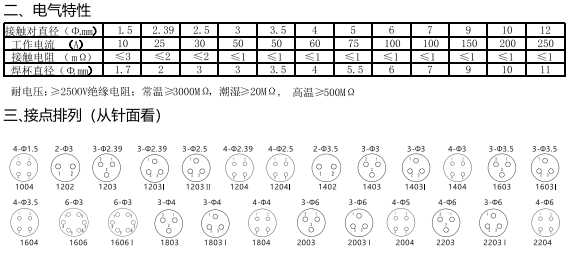

产品技术特性
使用环境条件
工作温度:-55℃~+125℃(150℃以上在订货时请注明,可在壳体号左上角加“*”符号)
相对湿度:40℃±2℃时,90%~95%
工作气压:4.39kPa~101.33kPa
振动:10Hz-2000Hz,加速度196m/s²
冲击:加 速 度:980m/s²
机械寿命:插拔法500次

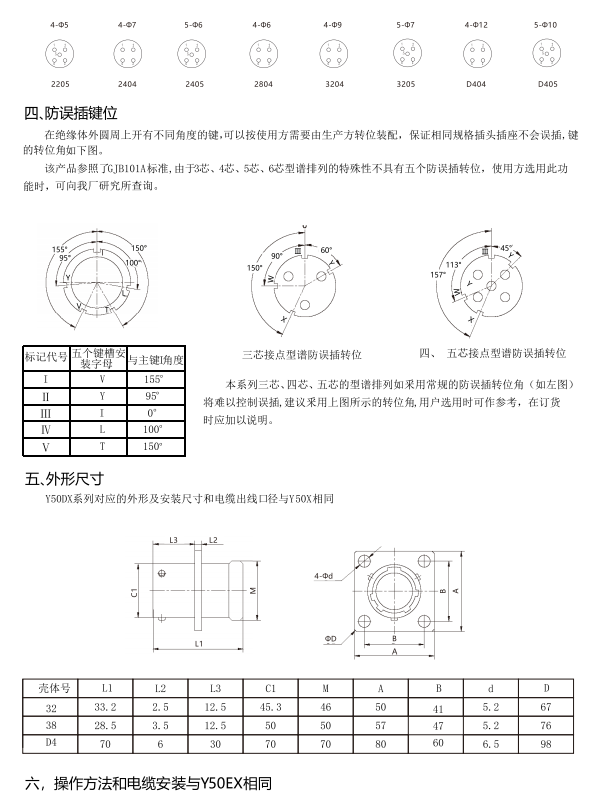

C58C58













 本产品为FT-BH系列圆形电连接器,如有需要,请联系我们。
