GJB599 Ⅲ系列圆形电连接器

产品概述
● 三头螺纹快速连接，快速锁紧及分离
● 符合GJB599【MIL-DIL-3899】II系列

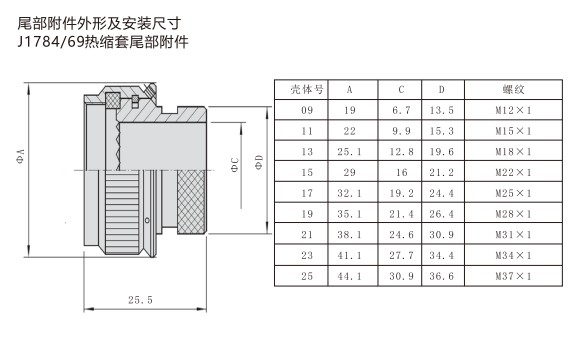

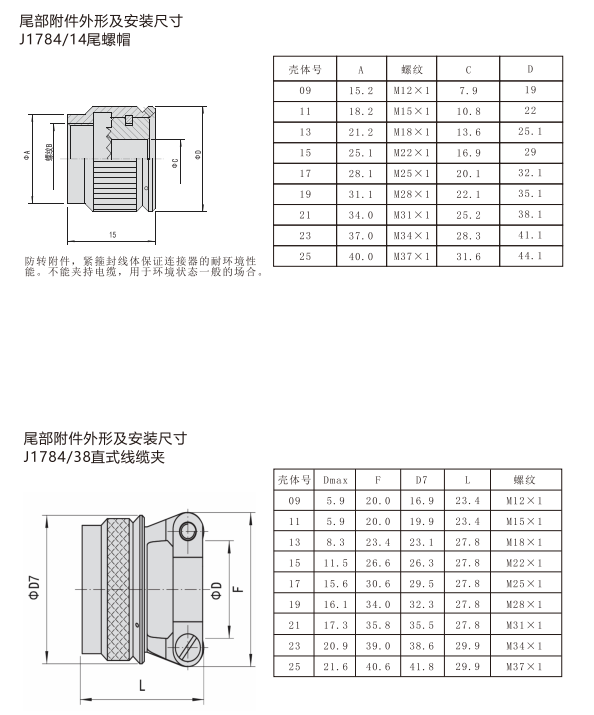

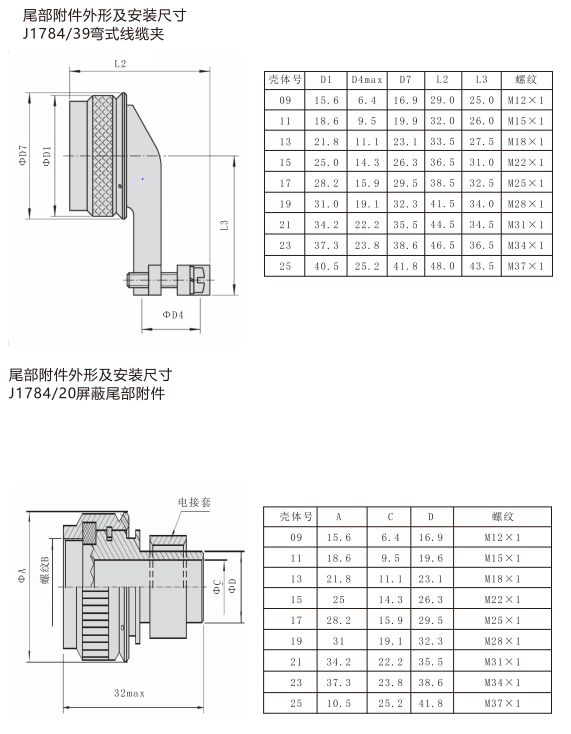

● 符合GJB1784标准尾部附件
● 具有耐冲击、高强度震动
● 插合界面及尾部具有密封结构，三防性能优良，防护等级可达IP68
● 重量轻、体积小接触偶密度高

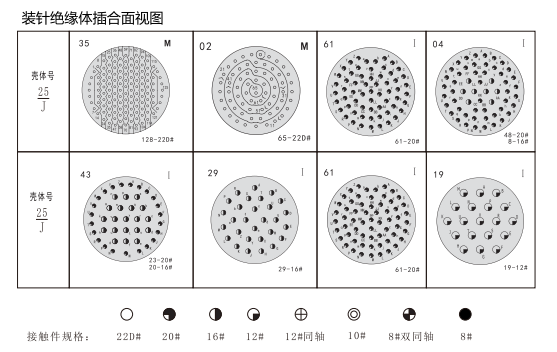

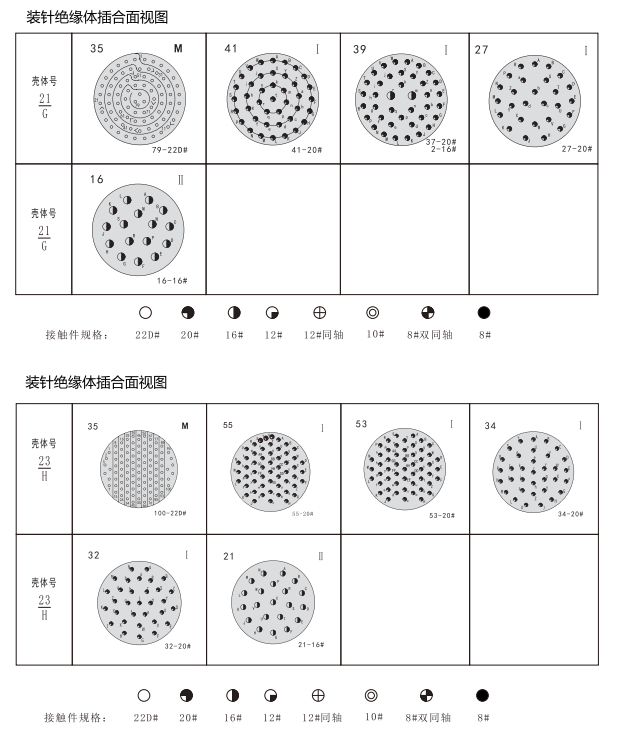

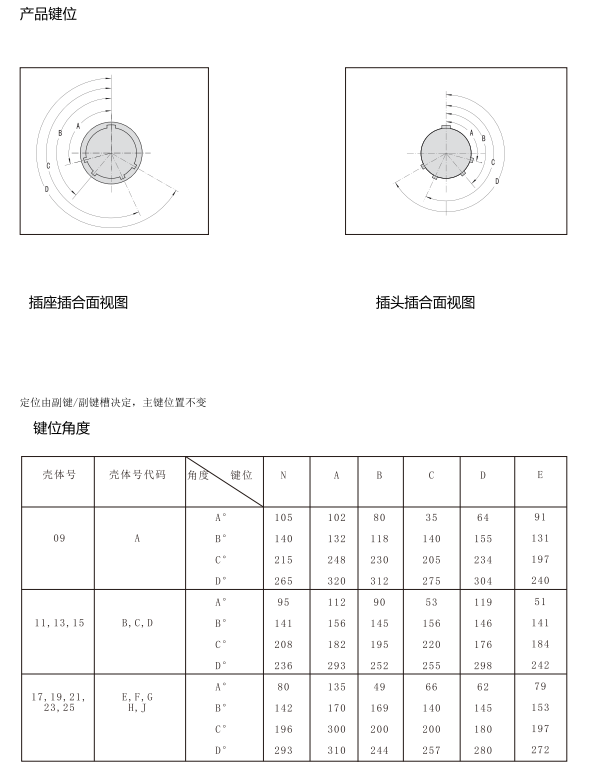

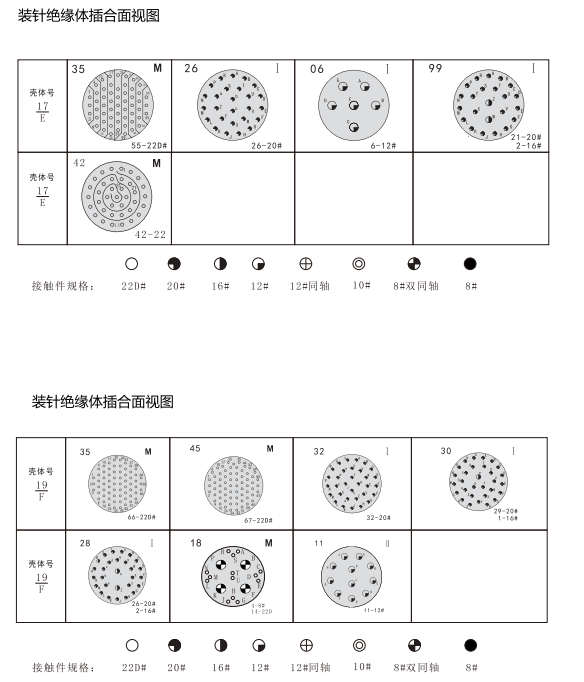

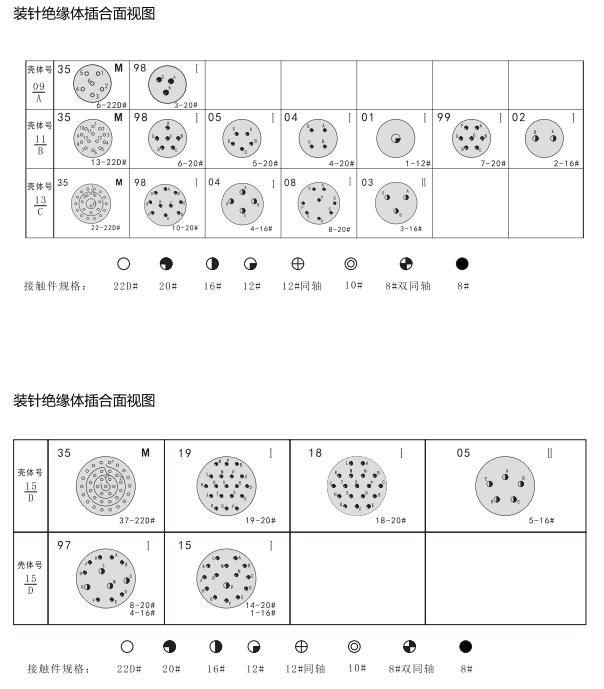

● 9种壳体尺寸及5种键位具有70多种形谱排列
● 广泛用于航空、航天、兵器、舰船、通讯等其它电子设备系统

机械性能
壳体：不锈钢、铝合金
镀层：B类/镀镉军绿色
E类/不锈钢钝化
F类/化学镀镍
绝缘体：热塑性塑料
密封圈及封线体：硅橡胶

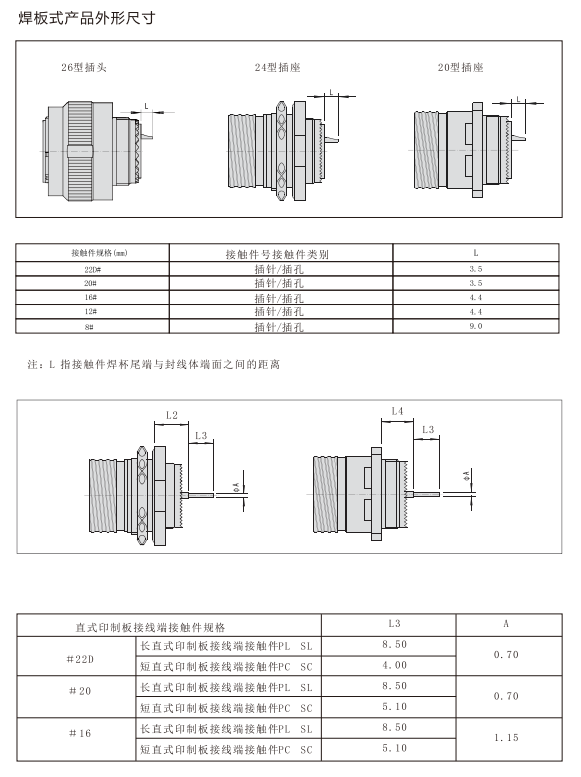

接触件：铜合金镀金，焊接型、压接型、印制板型
机械寿命： 500次插拔循环
振动：正弦振动：频率10~2000Hz，加速度294m/s²
随机振动：频率100~1000Hz，功率谱密度5G/Hz²
冲击：3ms半正弦波，加速度峰值300g

 本产品为FT-BH系列圆形电连接器，如有需要，请联系我们。
