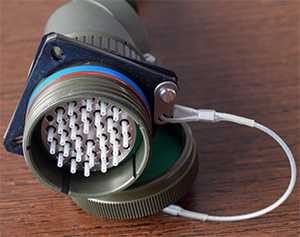

XCF系列

该产品接点密度等效于MIL-C-38999-1系列,其突出特点是密度高、体积小、重量轻。有7-129芯,9种孔人民位排列,其它性能与XCE基本相同。

环境性能
● 工作温度: -55℃~+200℃
● 相对湿度: 40℃时达95%
● 工作高度: 海拔30000m
● 振动: 频率10Hz~2000Hz加速度147m/s²
● 冲击: 加速度490m/s²
● 恒加速度: 490m/s²
● 有良好的防盐雾、防潮湿、防霉菌、防淋雨、防沙尘等性能

电气性能:
● 接触电阻及额定电流
● 接触件Φ 0.635mm
● 接触件接触电阻≤0.025Ω
● 额定电流IA

额定电压耐电压及绝缘电阻:

 标记、代号及意义:

注:
● 表示电连接器时,型号标记采用分数形式,插座标记写作分子,插头标记写作分母,用斜线隔开。
● 插头、插座型号在产品上直接标出,电连接器型号供用户订货和公司生产、经营管理用。
● 对于选配附件插头（座）,可在其型号后加上“+”后,在写出所要选的附件

例如:
XCF系列14型装镀金插孔插座,接触件数为10芯,壳体化学镀镍,N键位,型号为: FT-75-XCF14T10K1P1
XCF系列14型装镀金插针插头,接触件数为10芯,壳体化学镀镍,N键位,型号为: FT-75-XCF14T10ZIP

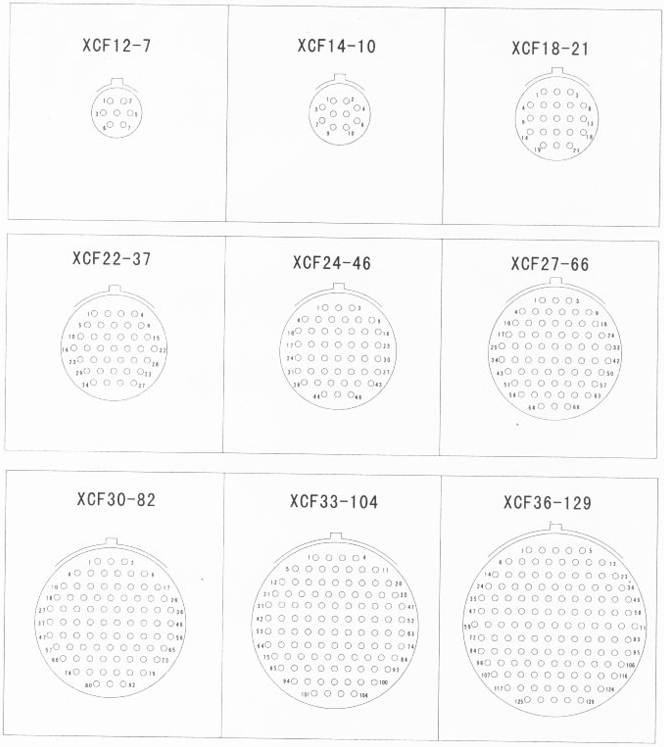

 外形尺寸:
