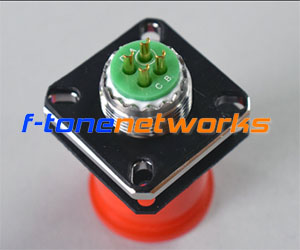

XCD系列

本系列产品专供电源使用,口式快速连接,插座有方法兰式安装和螺母并紧安装两种方式,双曲面线簧式插孔,五种识别键位,插头,插座均既可装针,亦可装孔: 与导线端接采用焊接方式,广泛应用于打电流条件下的电连接。

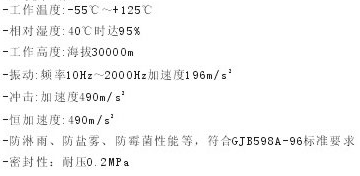

环境性能
● 工作温度: -55℃~+200℃
● 相对湿度: 40℃时达95%
● 工作高度: 海拔30000m
● 振动: 频率10Hz~2000Hz加速度147m/s²
● 冲击: 加速度490m/s²
● 恒加速度: 490m/s²
● 有良好的防盐雾、防潮湿、防霉菌、防淋雨、防沙尘等性能

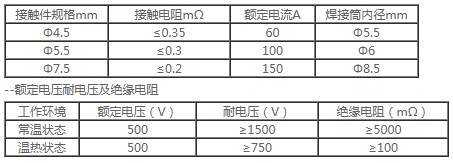

电器性能:

机械性能:
● 壳体:高强度铝合金
● 屏蔽镀层: 镀锌彩虹色或军绿色钝化、化学镀镍
● 非屏蔽镀层: 阳极氧化着色
● 绝缘体: 热固性材料
● 接触件: 铜合金材料 镀层银、金
● 机械寿命: ≥1000次

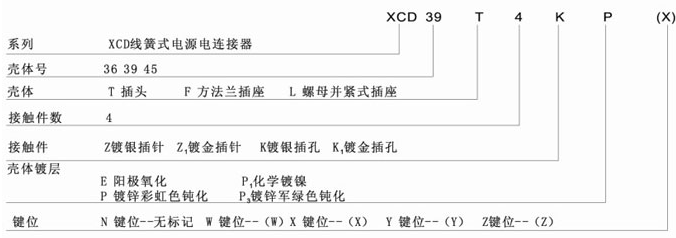

 标记、代号及意义

接点排序:

 外形尺寸:
