LYP圆形电连接器

本系列产品壳体采用高强度铝合金材料加工而成,卡口式外槽连接,具有体积小,重量轻,使用方便,耐插拔,密封性好,耐腐蚀,导电性能好,耐压性能佳之优点,且能与YP系列互换,是老式“P”型连接器的理想换代产品。产品广泛适用于电器设备及各类仪器、仪表之间的线路连接。

主要技术性能
环境性能:
● 工作温度: 焊接式 -55℃~125℃、压接式-55℃~200℃
● 相对温度: 40℃时达95%
● 工作高度: 海拔20000m
● 振动: 频率10Hz~2000Hz 加速度196m/s²
● 冲击: 加速度490/s²
● 气密性: 耐气压0.2MPa(仅密封性型)

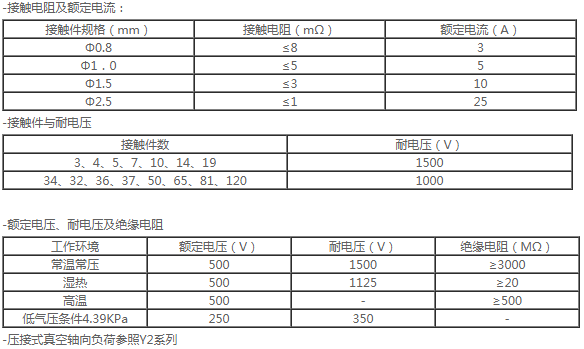

 电气性能:

压接式针孔轴向负荷参照Y2系列
接触件压接筒内直径与适配导线截面参照Y2系列

机械性能:
● 壳体: 高强度铝合金铸造件
● 镀层: 阳极氧化着色、度镍
● 绝缘体: 耐热热塑性或热固性材料
● 接触件: 铜合金材料 镀层金、银
● 机械寿命: 500次

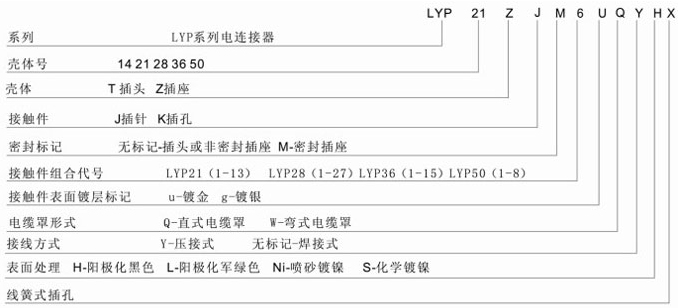

标记、代号及意义:

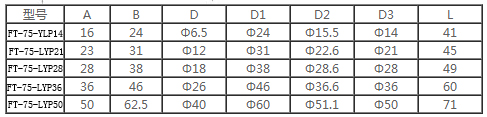

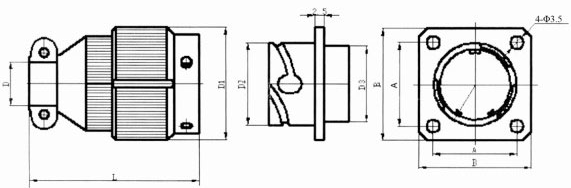

外形及安装尺寸:
