10Gbps MiniSFF LC 光收发一体模块 (10Km)

10Gbps MiniSFF LC 光收发一体模块 (10Km)

0.0/5 rating (0 votes)

Description

10Gbps MiniSFF LC 光收发一体模块 (10Km)

产品描述
● 纯国产零部件
● 遵循sff-8472的数字诊断功能
● 提供高速的I/O表面贴装管脚
● 全金属外壳设计
● 工业级温度使用范围,耐振动设计
● 1310nm DFB激光器,PIN光电探测接收器
● 传输距离可达10km
● 单电源供电(3.3V)
● MiniSFF封装 双LC接口
● 工作温度:
       FTMF-131X-10D-GC : 0℃~+70℃
       FTMF-131X-10DI-GC :-40℃~+85℃

产品应用
● 光纤通信链路

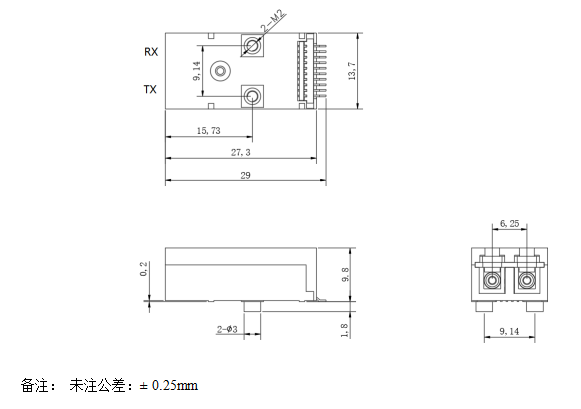

外形尺寸FT 95 15

订购信息

型号

封装

速率(Gb/s)

距离(km)

波长(nm)

发射功率(dBm)

接收灵敏度(dBm)

温度(℃)

FTMF-131X-10D-GC

LC

10.3125

10

1310

-8.2 to +0.5

-14.4

0 ~70

FTMF-131X-10DI-GC

LC

10.3125

10

1310

-8.2 to +0.5

-14.4

-40 ~85













本产品为FTMF系列,仅展示部分参数,如有需要,请联系我们。

注:本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
