3.3V 2X5 SFF 622M单模光收发一体模块(100km)

3.3V 2X5 SFF 622M单模光收发一体模块(100km)

0.0/5 rating (0 votes)

Description

3.3V 2X5 SFF 622M单模光收发一体模块(100km)

产品描述
● 纯国产零部件
● 单电源供电(3.3V)
● 2x5 SFF封装,LC接口
● 1550DFB激光器,PIN光电探测接收器
● 传输距离:100km
● SD输出告警
● CML/LVPECL输入
● CML输出
● 工作温度:
     FTAF-1562-H0I-GC 商业级 0 ℃to 70℃
     FTAF-1562-H0I-GC 工业级 -40 ℃to85℃

产品应用
● 光纤通信链路

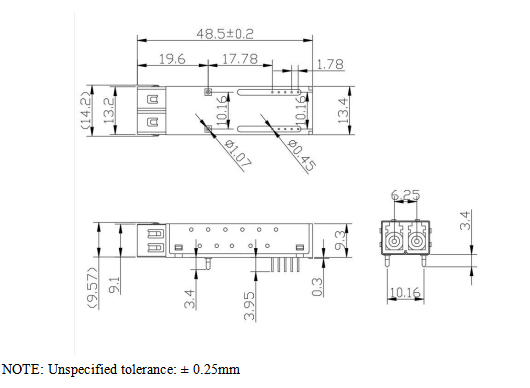

外形尺寸

A5

订购须知

产品型号

 接口

 速率(Mb/s)

 距离(Km)

 波长(nm)

 发射功率(dBm)

接收灵敏度(dBm)

工作温度(℃)

FTAF-1562-H0I-GC 商业级

 LC

622

100

1550

0 to +5

-30

0~70

FTAF-1562-H0I-GC 工业级

LC

622

100

1550

0 to +5

-30

-40~85













注:本产品有全国产化型号可选

本产品为FTAF系列,仅展示部分参数,如有需要,请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
