1.25~10Gbps CWDM单模发射/APD接收 LC SFP+光收发一体模块

0.0/5 rating (0 votes)

Description

1.25~10Gbps CWDM单模发射/APD接收 LC SFP+光收发一体模块

产品描述
● 纯国产零部件
● 遵循sff-8472的数字诊断功能
● 传输距离可达10km
● 单电源供电（3.3V）
● (DE):1270nm DFB发射,1330nm接收
● (ED):1330nm DFB发射,1270nm接收
● 差分CML输入
● 差分CML输出
● SFP+封装 LC光收发器接口
● 符合国际安全标准IEC-60825（Class 1 Laser ）
● 工作温度：
FTCS-B271X-10D-GC / FTCS-B331X-10D-GC : 0℃~+70℃
FTCS-B271X-10DI-GC / FTCS-B331X-10DI-GC : -40℃~+85℃

产品应用
● 10G以太网等数字光纤通信系统
● 光纤通信链路

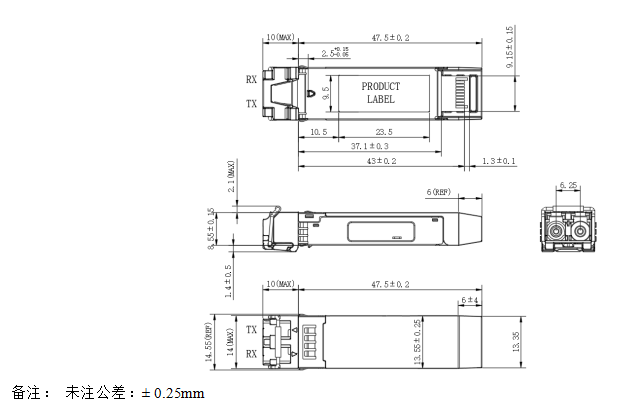

产品外形

订单信息

产品型号	波长(nm)	发射光功率(dBm)	接收灵敏度@10G(dBm)	接口	速率(Gb/s)	电压(V)	工作温度(℃)
FTCS-C271X-10D-GC	1270CWDM	0 to +5	-21	LC	1.25~10	3.3	0 ~70
FTCS-C291X-10D-GC	1290CWDM	0 to +5	-21
FTCS-C311X-10D-GC	1310CWDM	0 to +5	-21
FTCS-C331X-10D-GC	1330CWDM	0 to +5	-21
FTCS-C351X-10D-GC	1350CWDM	0 to +5	-21
FTCS-C371X-10D-GC	1370CWDM	0 to +5	-21
FTCS-C391X-10D-GC	1390CWDM	0 to +5	-21
FTCS-C411X-10D-GC	1410CWDM	0 to +5	-21
FTCS-C431X-10D-GC	1430CWDM	0 to +5	-21
FTCS-C451X-10D-GC	1450CWDM	0 to +5	-21
FTCS-C471X-10D-GC	1470CWDM	0 to +5	-21
FTCS-C491X-10D-GC	1490CWDM	0 to +5	-21
FTCS-C511X-10D-GC	1510CWDM	0 to +5	-21
FTCS-C531X-10D-GC	1530CWDM	0 to +5	-21
FTCS-C551X-10D-GC	1550CWDM	0 to +5	-21
FTCS-C571X-10D-GC	1570CWDM	0 to +5	-21
FTCS-C591X-10D-GC	1590CWDM	0 to +5	-21
FTCS-C611X-10D-GC	1610CWDM	0 to +5	-21

产品型号	波长(nm)	发射光功率(dBm)	接收灵敏度@10G(dBm)	接口	速率(Gb/s)	电压(V)	工作温度(℃)
FTCS-C271X-10DI-GC	1270CWDM	0 to +5	-21	LC	1.25~10	3.3	-40 ~85
FTCS-C291X-10DI-GC	1290CWDM	0 to +5	-21
FTCS-C311X-10DI-GC	1310CWDM	0 to +5	-21
FTCS-C331X-10DI-GC	1330CWDM	0 to +5	-21
FTCS-C351X-10DI-GC	1350CWDM	0 to +5	-21
FTCS-C371X-10DI-GC	1370CWDM	0 to +5	-21
FTCS-C391X-10DI-GC	1390CWDM	0 to +5	-21
FTCS-C411X-10DI-GC	1410CWDM	0 to +5	-21
FTCS-C431X-10DI-GC	1430CWDM	0 to +5	-21
FTCS-C451X-10DI-GC	1450CWDM	0 to +5	-21
FTCS-C471X-10DI-GC	1470CWDM	0 to +5	-21
FTCS-C491X-10DI-GC	1490CWDM	0 to +5	-21
FTCS-C511X-10DI-GC	1510CWDM	0 to +5	-21
FTCS-C531X-10DI-GC	1530CWDM	0 to +5	-21
FTCS-C551X-10DI-GC	1550CWDM	0 to +5	-21
FTCS-C571X-10DI-GC	1570CWDM	0 to +5	-21
FTCS-C591X-10DI-GC	1590CWDM	0 to +5	-21
FTCS-C611X-10DI-GC	1610CWDM	0 to +5	-21

本产品为全国产光模块SFP系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
