微封装锁相源SiP模块(15x12x3型)

0.0/5 rating (0 votes)

Description

产品特点
●  细步进
●  低相噪
●  低杂散
●  体积小
●  气密性好
●  可靠性高

典型应用
●  航空

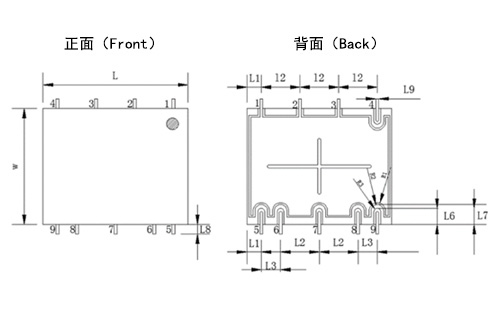

●  机载20

电性能参数(TA=+25℃,Vdd=+5V,输出频率1GHz条件下)

参数名称

单位

最小值

典型值

最大值

输出频率

MHz

25

-

8400

测试频率点

MHz

-

1000

-

输出功率

dBm

-

10

-

谐波抑制

dBc

-

-

-17

杂波抑制

dBc

-

-

-70

工作电流

mA

-

-

260

相位噪声(fm=1KHz)

dBc/Hz

-

-

-118

相位噪声(fm=10KHz)

dBc/Hz

-

-

-120















Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
