L-S波段上变频SiP模块

0.0/5 rating (0 votes)

Description

产品特点
●  细步进
●  低相噪
●  低杂散
●  体积小
●  气密性好
●  可靠性高

典型应用
●  航空

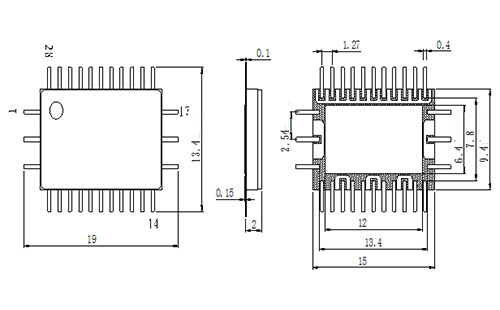

●  机载17

电性能参数(TA=+25℃,Vdd=+5V,Vee=-5V)

参数名称

单位

最小值

典型值

最大值

中频输入频率

MHz

175

-

575

射频输出频率

GHz

2.X

-

3.X

通道增益

dB

0

-

1

高低温增益波动

dB

-

±1

-

输入P-1

dBm

-15

-

-

本振输入功率

dBm

-

-6

-

射频输入端口本振泄露

dBm

-

-

-30

中频输出端口本振泄露

dBm

-

-

-40

输入输出驻波

-

-

1.6

衰减位数(0.5dB步进)

Bit

-

4

-

正电源电流

mA

-

-

160

负电源电流

mA

-

1

-













Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
