MXC® 至 LC 组件

MXC® 至 LC 组件

0.0/5 rating (0 votes)

Description

MXC® 至 LC 组件

最新的 MXC® 光学互联解决方案,利用扩束 MT 技术,实现尖端的高密度互联。它为嵌入式光学引擎提供了一个直接的卡缘接口,用于各种设备接口应用。
F-tone Networks 作为全球认可专业光通信制造商,以使用最新的 MXC® 连接器,提供完全定制的光纤组件。我们的 MXC® 至 LC 扇出组件是一种便捷解决方案,可将 MXC® 接口转换为单独的 LC,以连接 QSFP 或其它有源光学模块。

功能与应用:
● 尖端的高密度
132 个 MXCTM 适配器可装入 19" 1U 板,增加 40% 面板空间和 59% PCB 区域

● 对碎片和污染敏感度较低
带扩束 MT 技术的嵌入式套圈

● 降低成本、复杂性及占地面积
消除了传统的适配器,并减少了组件数量

● 操作和安装的高度灵活性
从 MXC® 接口到 LC/PC 的便捷转换,用于连接 QSFP 或其它有源光学模块

● 每秒太比特的带宽能力
64 根光纤,每根以 25Gbps 传输数据,每个连接器允许 1.b TBit/s

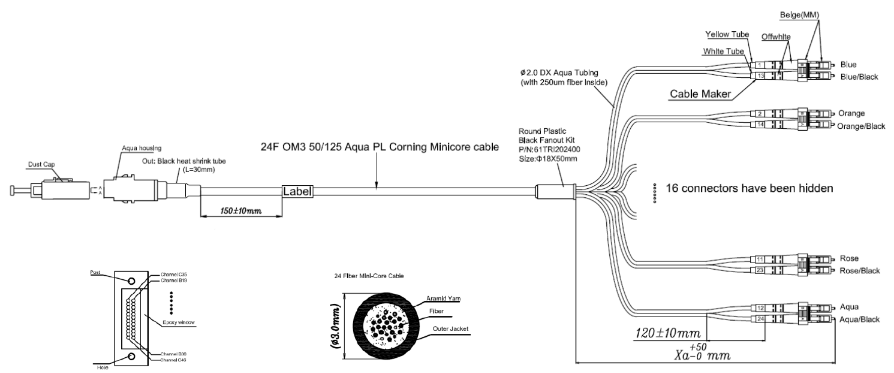

 装配结构图:

部件描述: MXC 插头至 LC/PC 扇出,24 光纤,OM3,Mini-core 光缆



 49











Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
