JYS-MT系列光纤连接器

产品描迷
● 适于电子、航空、兵器、舰船等系统使用，耐环境能力强
● 替换FC、LC等民用活动连接器
● 三键定位，有盲插和防错插功能，快速卡口连接
● 接触件为M12、M24类，采用标准MT接口，性能可靠、操作简单、集成度高，产品可实现12路24路高密度光信号传输

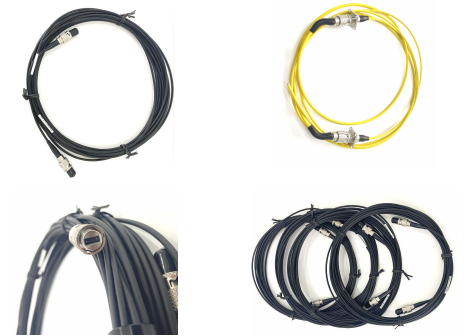

产品图片

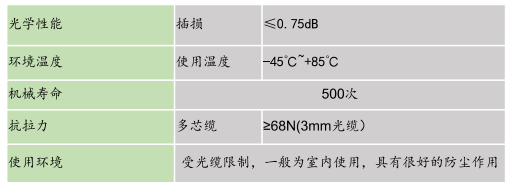

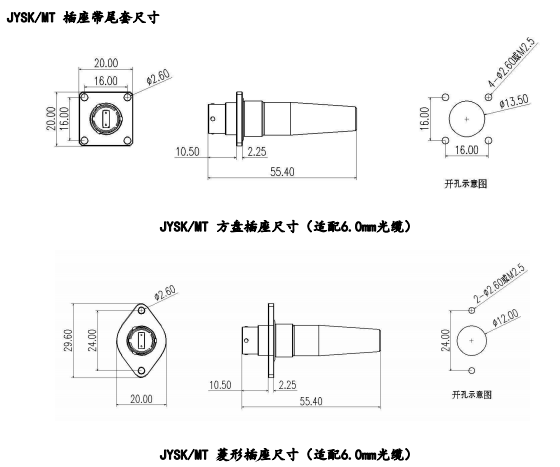

连接器参数

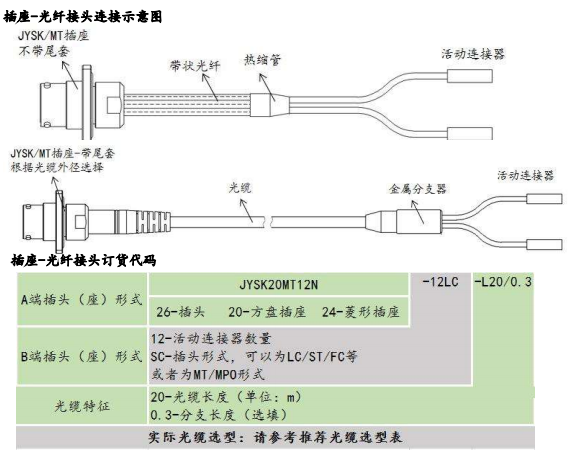

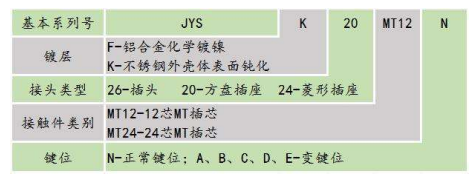

订货代码

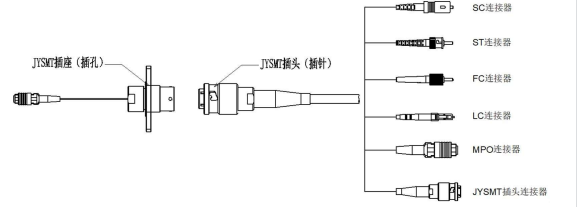

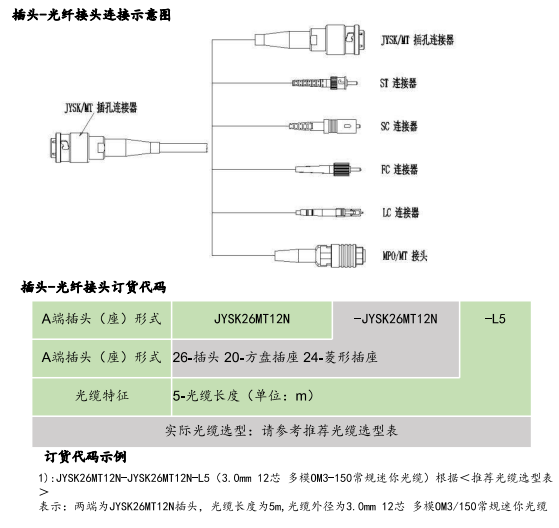

连接方案图

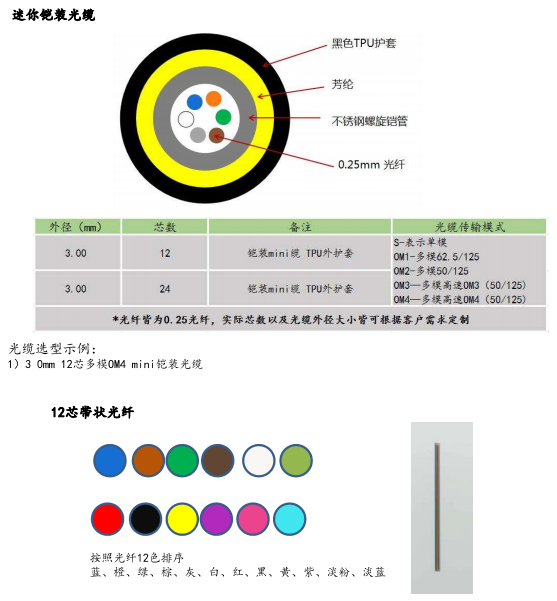

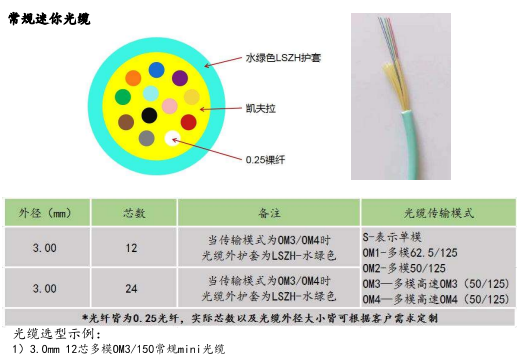

推荐光缆选型表

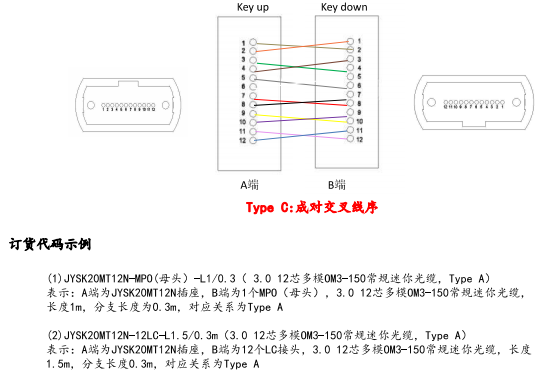

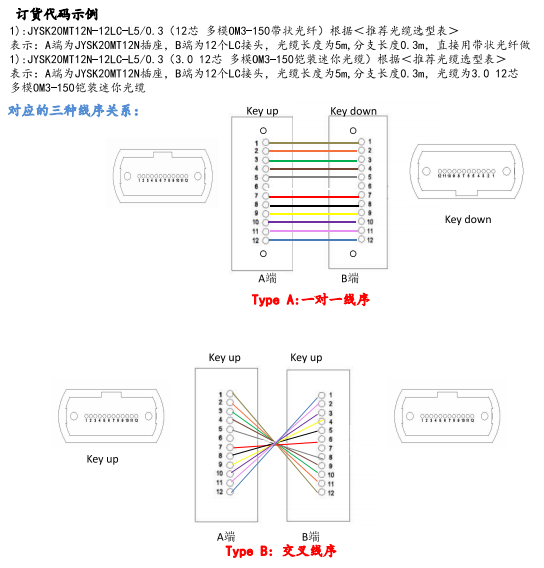

常见订货代码

注：本产品有全国产化型号可选
