1 产品简介

该超小型化EDFA是单一通道放大器，专应用在在电信，数据或有线电视等领域。这款超小型化EDFA支持APC/ACC的工作模式，可以实时监控和调整输出光功率，还可以支持实时输出LOS报警和泵浦保护。

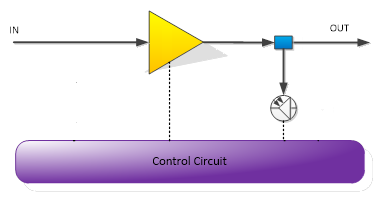

Figure 1-1  功能图示

该超小型化EDFA通过UART界面支持模块上的以下功能:

➢ 输出功率设置（APC工作模式）

➢ 泵浦状态设置（开/关）

➢ 可读取输出功率，模块温度，泵浦电流和功率

➢ 可读取输出功率，模块温度，泵浦电流和功率的实时告警

➢ 可读取告警门限

2 技术指标
2.1环境性能指标

Table 2-1环境性能指标

Table 2-2 光性能指标

3 电气接口定义

Table 3-1 PIN 定义

接头：M40-3200445R-Male （品牌：Harwin）

4 机械尺寸

 尺寸: 35*20*5.5 mm

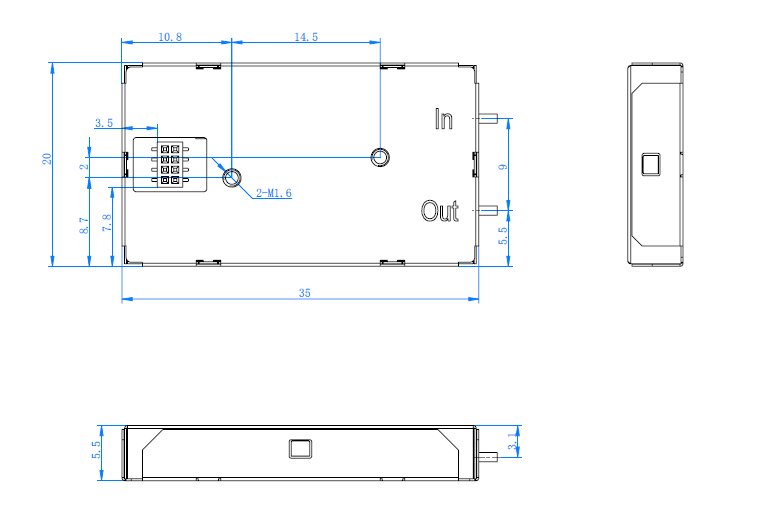

  Figure 4-1  结构图

5 订购信息
