CATV光纤放大器

0.0/5 rating (0 votes)

Description

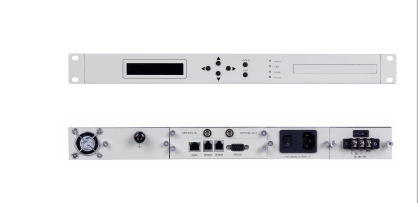

CATV光纤放大器



43



说明

该产品为高稳定度输出 EDFA。采用高稳定和高精度的 MPU(微处理器)系统使用调节、显示方便、可靠、智能。产品专为模拟CATV系统设计的光路具有:(1)工作信号上良好的光谱平坦性,保证更高的 CSO 指标,(2)整个频段内良好的光谱平坦度,更适应于插播等应用以满足NGB(下一代广播网)的需求。
采用独创的智能温控系统,当整机温度高于45℃时,强力风扇开始工作,温度低于40℃时,风扇停止;采用专用控温芯片,散热和功耗比常规产品降低30%。



应用
    ● 模拟CATV 长距离传输
    ● 长距离系统配合色散补偿使用
    ● 光分配系统
    ● FTTH光纤到户系统



特点
    ● 低噪声系数:0dBm输入时低于5.0dB
    ● 极低CSO劣化:<-70dBc
    ● 双电源可插拔高性能电源:可混插220V和48V电源
    ● 高稳定性和高可靠性:MTBF>100000小时
    ● 完善的网管接口:以太网、RS-485和RS-232 网络接口
    ● 支持 Telnet 和国标 SNMP 网管

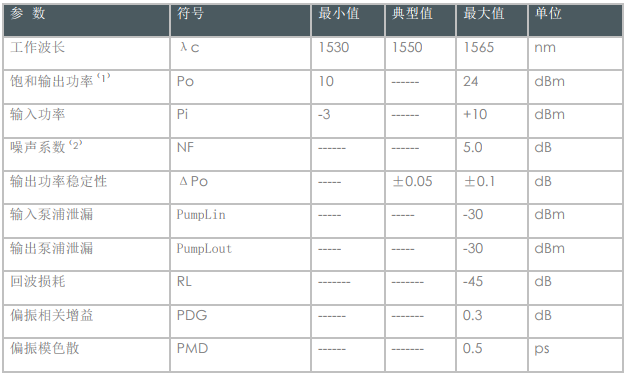

 光性能指标

44

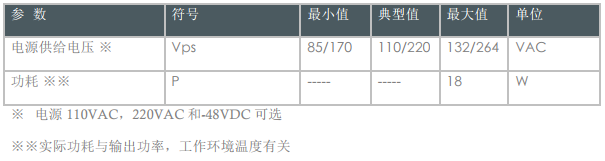

 电性能指标

45

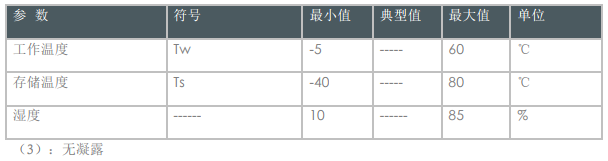

  环境性能指标

46

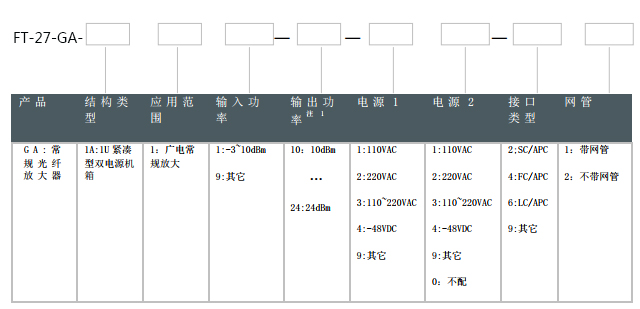

产品型号

28



Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
