CATV40dBm高功率放大器

CATV40dBm高功率光纤放大器

5.0/5 rating 1 vote

Description

应用

  • 模块式光纤放大系统
  • 视频光传输系统
  • 光分配系统
  • FTTH

特点

  • 低噪声系数
  • 双路 EDFA,每路可达 37dBm,可 分开控制。
  • 高稳定性和高可靠性:MTBF> 100000 小时
  • 完善的状态监控接口: RS-485 和 RS-232 接口
  • 高精度的 AGC/APC 电路:功率控制 精度典型值为±0.05dB
  • 智能化温控系统:采用专用控温 芯片,散热和功耗比常规产品降低 30%
  • 紧凑的机械和电路结构
  • 可根据客户要求提供 OEM 服务
  • 所有性能符合 Bellcore GR1312-CORE 要求

说明

该产品为高功率输出 C-Band Er-Yb 共掺双包层光纤放大模块。核心器件采用高可靠性的多模 Pump 激光器和双包层光纤,独特的光路设计保 证优秀的光路指标;采用高稳定和高精度的 MPU(微处理器)系统使用 调节、显示方便、可靠、智能。 产品采用与常规 EDFA 不同的双包层铒镱共掺放大技术,具有比普 通技术高 10 倍的电光转换效率,所以具有更低的相对成本和更紧凑的体 积与更低的功耗,特别适用于光纤到户 FTTH,光纤到楼等大分配比系统 中应用。 该设备采用本公司独特的专利技术进行大功率 Pump 泄漏的处理,以 及专利技术的激光器驱动电路,来获得更优的指标和更稳定的性能。 采用独创的智能温控系统,专用温控芯片,使设备发热量比常规电路 减小 30%,保证系统的热稳定性。

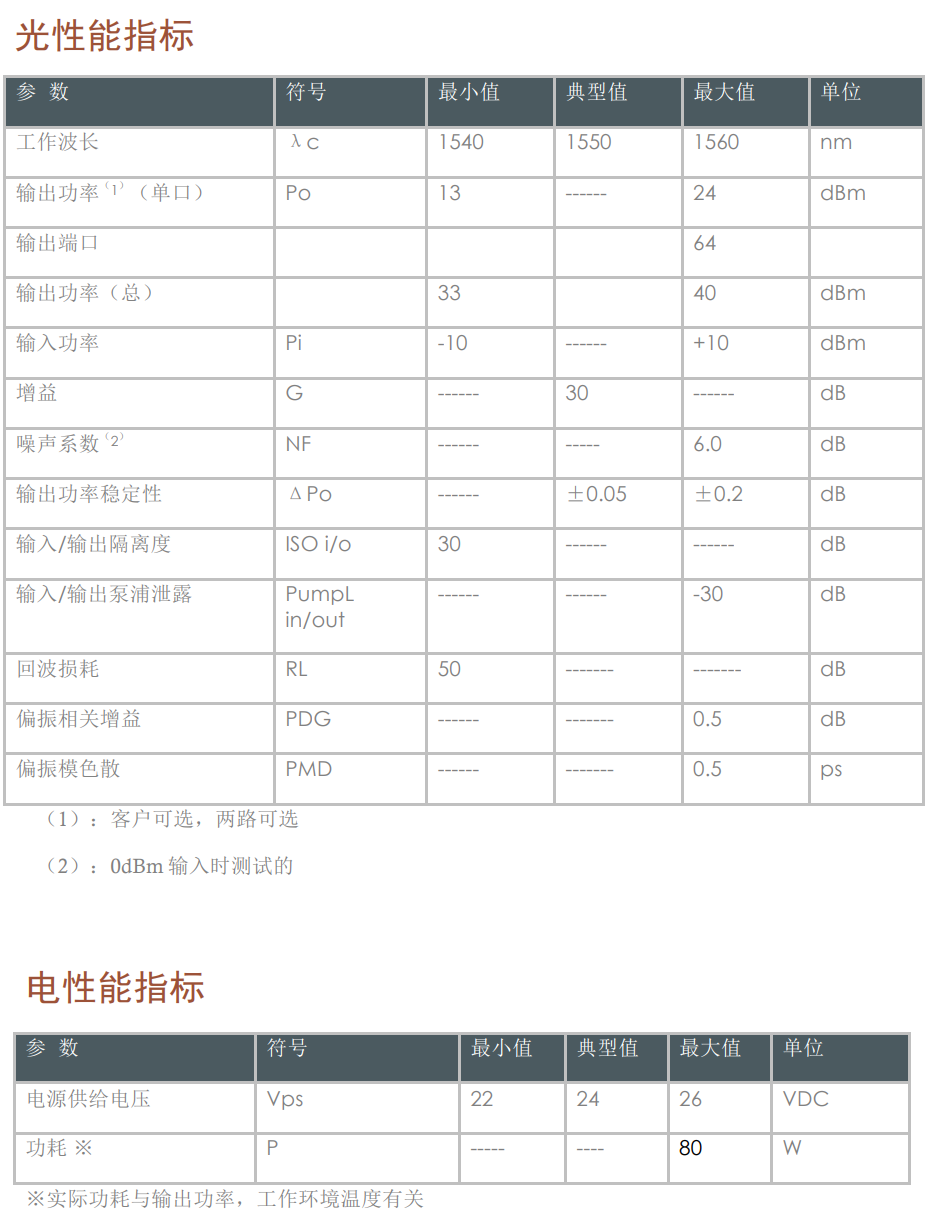

CATV40dBm fa



Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
