波分复用器 1A

0.0/5 rating (0 votes)

Description

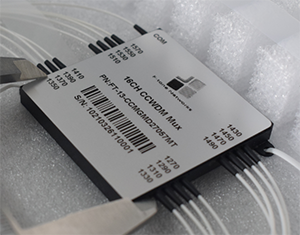

波分复用器 1A

产品介绍

--Specifications

Parameters	Unit	CCWDM Module
Wavelength Range	nm	1471 / 1491 / … / 1611
Channel Spacing	nm	20
Channel Passband	nm	λc ± 7
Channel No.	λ	4	8
Insertion Loss	dB	1.0	1.2
Adjacent Channel Isolation	dB	≥ 30
Non-adjacent Channel Isolation	dB	≥ 45
PDL	dB	≤ 0.2
Polarization mode dispersion	ps	≤ 0.2
Directivity	dB	≥ 50
Return loss	dB	≥ 45
Optical Power	mW	≤ 300
Operating Temperature	℃	-5 ~ +65
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	45 x 27 x 6
Note: 1. Customization is available. 2.Specified without connector, and add an additional 0.2dB loss per connector.

Ordering Information

CCWDM-A-B-C-D-E

Channel No.

Tube Type

Fiber Length

(Include connector)

Connector

Wavelength

4: 4 channels

8: 8 channels

n: n channels

90:900um

X: Others

05: 0.5m±0.05m

10: 1.0m±0.05m

X: Others

OO:None

FP:FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

X: Others

λ1 / λ2 / λ3 /…

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
