波分复用器 2A

0.0/5 rating (0 votes)

Description

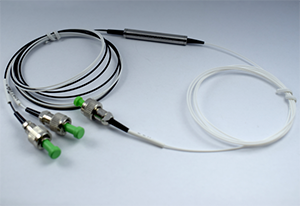

波分复用器 2A

产品介绍

--Specifications

Parameters	Unit	DWDM Device
Operating Wavelength		ITU channels 186.6 to196.1 THz
Channel Space	Ghz	100	200
Channel Center Wavelength	nm	ITU Grid
Center Wavelength Accuracy	nm	±0.05	±0.1
Channel Passband (@-0.5dB)	nm	≥0.22	≥0.5
Insertion Loss	dB	Transmission: ≤ 0.9
		Reflection: ≤ 0.4
Adjacent Channel Isolation	dB	≥ 30
Non-adjacent Channel Isolation	dB	≥ 45
Reflection Channel Isolation	dB	≥ 13
PDL	dB	≤ 0.1
PMD	ps	≤ 0.1
Return loss	dB	≥ 45
Directivity	dB	≥50
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.5×34	Φ4.2×25
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector.

--Ordering Information: DWDM-A-B-C-D-E

Channel Center Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

Dimension

Txx: Txxxxnm

(xx =Channel Number)

eg. T57: T1531.9nm

25:250um

90:900um

X: Others

05: 0.5m±0.05m

10: 1.0m±0.05m

15: 1.5m±0.05m

X: Others

OO:None

FP:FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

X: Others

5538:

Φ5.5×38mm

5534:

Φ5.5×34mm

4225:

Φ4.2×25mm

X: Others
