40G QSFP+ TO 4X SFP+ Passive Copper Cable Assembly

40G QSFP+ TO 4X SFP+ Passive Copper Cable Assembly

0.0/5 rating (0 votes)

Description

Features

●Fully compliant to the latest SFP+ & QSFP+ MSA
●Supports 40-Gigabit Ethernet standards
●Up to 10.3125 Gbps transfer rate per SFP+ channel
●30 AWG to 26 AWG cable sizes available
●100 ohm differential impedance system
●All-metal housing for superior EMI performance
●Precision process control for minimization of pair-to-pair skew
●AC coupling of PECL signals
●EEPROM for cable signature & system communications
●Low cross-talk
●RoHS compliant

Applications
●InfiniBand SDR, DDR,QDR
●40G Ethernet transmission
●Fiber Channel
●Rack-to-Rack, Shelf-to-Shelf Interconnect
●Networking
●Hubs, switches, routers, servers
●Data center interconnect
●High Performance Computing application

Product Description
interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers. For typical applications, users can install this splitter cable between an available QSFP port on their 40-Gigabit/s rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) rated for 40-Gb/s on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other. 10GSFP is the manufacturer of QSFP to 4 SFP+ Splitter Cables that designs and sources every subassembly in-house guaranteeing complete control over product performance, quality and consistency. Examples include our widely respected board-as-connector platform which is direct-welded to the wire and encased in a robust Zinc Nickel back shell for superior crosstalk and EMI performance. Cable available in 0.5M (1.7ft), 1m (3.3ft), 2m (6.6ft), 3m (9.8ft) & 5m (16.4ft) lengths to accommodate your installation requirements.

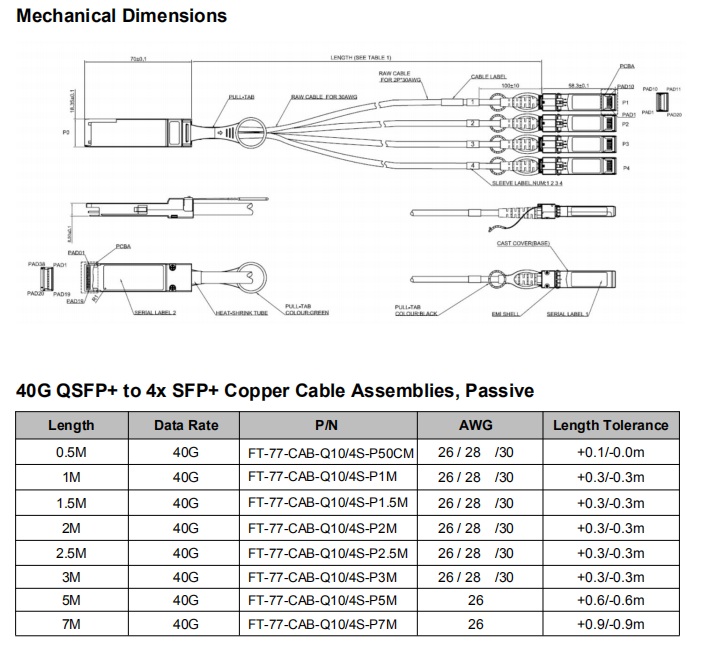

 17





Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
