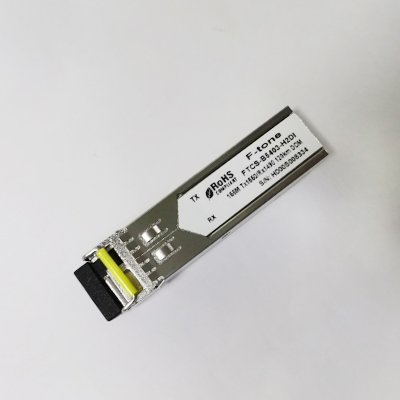

155Mb/s SFP BIDI 160km

155Mb/s SFP BIDI 160km

0.0/5 rating (0 votes)

Description

155Mb/s SFP BIDI 160km

Features
● Up to 155Mb/s data links
● 1550nm DFB laser transmitter and APD photo-detector
● Up to 160km on 9/125µm SMF
● Hot-pluggable SFP footprint
● BIDI LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Case operating temperature:
   Commercial: 0 ~ +70oC
   Extended: -10 ~ +80oC
   Industrial: -40 ~ +85oC

Applications
● Switch to Switch Interface
● Fast Ethernet
● Switched Backplane Applications
● Router/Server Interface
● Other Optical Links

General Description
F-tone Networks'FTCS-B5403-H6Dxx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA),The transceiver consists of five sections: the LD driver,the limiting amplifier,the digital diagnostic monitor,the DFB laser and the PIN photo-detector .The module data link up to 160km in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

1530

1550

1570

nm

Spectrum Bandwidth(RMS)

σ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

0

5

dBm

1

Optical Extinction Ratio

ER

8.2

dB

Transmitter OFF Output Power

POff

-45

dBm

Transmitter Eye Mask

Compliant with G.957(class 1 laser safety)

Receiver

Center Wavelength

λC

1470

1490

1510

nm

Receiver Sensitivity (Average Power)

Sen.

-35

dBm

2

Input Saturation Power (overload)

Psat

-10

dBm

LOS Assert

LOSA

-44

dB

3

LOS De-assert

LOSD

-36

dBm

3

LOS Hysteresis

LOSH

0.5

2

6

dBm


Notes:
1. Measure at 2^23-1 NRZ PRBS pattern
2. Measured with Light source 1550nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ
3. When LOS de-asserted, the RX data+/- output is High-level (fixed).

Part Number Ordering Information

Part Number

Data Rate (Mb/s)

Wavelength      (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

FTCS-B5403-H6D

155

1550Tx/1490nmRx

160km SMF

0~70 commercial

FTCS-B5403-H6DE

155

1550Tx/1490nmRx

160km SMF

-10~80 Extended

FTCS-B5403-H6DI

155

1550Tx/1490nmRx

160km SMF

-40~85 Industrial

Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or
contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
