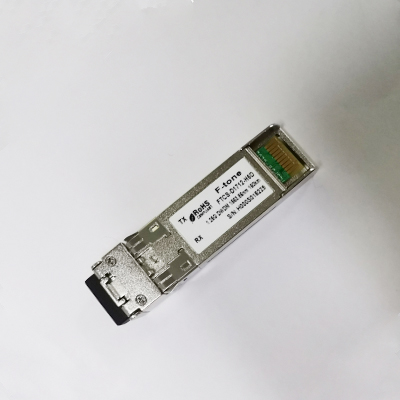

1250Mb/s SFP DWDM 160km

1250Mb/s SFP DWDM 160km

0.0/5 rating (0 votes)

Description

1250Mb/s SFP DWDM 160km

Features
● Up to 1250Mb/s data links
● DWDM EML laser transmitter and APD photo-detector
● 100 GHz ITU channel spacing with integrated wavelength locker
● Up to 160km on 9/125µm SMF
● Hot-pluggable SFP footprint
● Duplex LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Case operating temperature:
   Commercial: 0 ~ +70oC
   Extended: -10 ~ +80oC
   Industrial: -40 ~ +85oC

Applications
● SONET/SDH networks
● Gigabit Ethernet
● C Band DWDM networks
● Fiber Channel

General Description
F-tone Networks'FTCS-Dxx12-H6Dxx transceivers include an APD photo-detector diode and temperature stabilized DWDM EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid,C Band DWDM wavelength. Digital diagnostics functions are available via a 2-wire serial interface,as specified in SFF-8472.
The optical output can be disabled by a TTL logic high-level input of Tx Disable,and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typ.

Max

Unit

Notes

Transmitter

Optical Wavelength

λC

λc -0.1

λc +0.1

nm

1

Center Wavelength Spacing

100

 GHz

Spectrum Bandwidth(RMS)

σ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Average Optical Power

PAVG

1

6

dBm

2

Optical Extinction Ratio

ER

9

dB

Transmitter OFF Output Power

POff

-45

dBm

Transmitter Eye Mask

Compliant with 802.3z(class 1 laser safety)

Receiver

Center Wavelength

λC

1270

1610

nm

Receiver Sensitivity (Average Power)

Sen.

-33

dBm

3

Input Saturation Power (overload)

Psat

-10

dBm

LOS Assert

LOSA

-41

dB

4

LOS De-assert

LOSD

-34

dBm

4

LOS Hysteresis

LOSH

0.5

2

6

dBm


Notes:
1. λc refer to wavelength selection,and corresponds to approximately 0.8 nm
2. Measure at 2^7-1 NRZ PRBS pattern
3. Measured with Light source 1563.86~1528.77nm, ER=9dB; BER =<10^-12 @PRBS=2^7-1 NRZ
4. When LOS de-asserted,the RX data+/- output is High-level (fixed).

Part Number Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

FTCS-Dxx12-H6D

1.25

Refer to wavelength selection

160km SMF

0~70 commercial

FTCS-Dxx12-H6DE

1.25

160km SMF

-10~80 Extended

FTCS-Dxx12-H6DI

1.25

160km SMF

-40~85 Industrial

Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or
contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
