155Mbps 2X5 SFF Transceiver Module
Description
155Mbps 2X5 SFF Transceiver Module
Product Description
F-tone’s FTAF-XX03-XX series of transceiver modules are the perfect solution for high-speed communication networks.FTAF-XX03-XX series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
F-tone’s FTAF-XX03-XX Small Form Factor (SFF) transceivers comply with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). They also comply with SONET OC-3 SR-1/IR-1 (SDH STM I-1/S-1.1) standards2. The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
F-tone’s FTAF-XX03-XX SFF transceivers support data rates from 100Mbps to 200Mbps.
F-tone’s FTAF-XX03-XX SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm or 1550nm wavelength Laser Transmitter
● Up to 120 Km on 9/125μm SMF
● Single 3.3V power supply
● Standard 2X5 pin footprint (MSA Compliant)
● Two temperature ranges:
—0°C to +70°C
—-40°C to +85°C for industry level
—-50°C to +85°C（军品级）
● Duplex LC connector
● LVPECL/CML Signal Input and Output
● TTL Signal Detect
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

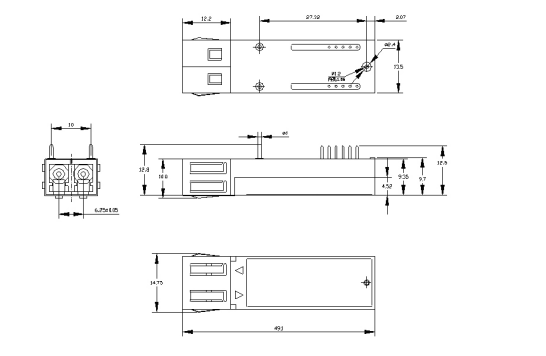

SFF Outline Drawing
Ordering information
Table 1: Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
Temperature ranges |
Signal TX /Signal RX/Signal Detect |
|
FTAF-1303-20 |
SM |
1310(FP) |
20 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1303-40 |
SM |
1310(FP) |
40 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1303-60 |
SM |
1310(FP) |
60 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-20 |
SM |
1550(FP) |
20 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-40 |
SM |
1550(DFB) |
40 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-60 |
SM |
1550(DFB) |
60 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-80 |
SM |
1550(DFB) |
80 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-H0 |
SM |
1550(DFB) |
100 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-H2 |
SM |
1550(DFB) |
120 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
Order Information for industry level
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
Temperature ranges |
Signal TX /Signal RX/Signal Detect |
|
FTAF-1303-20I |
SM |
1310(FP) |
20 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1303-40I |
SM |
1310(FP) |
40 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1303-60I |
SM |
1310(FP) |
60 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-20I |
SM |
1550(FP) |
20 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-40I |
SM |
1550(DFB) |
40 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-60I |
SM |
1550(DFB) |
60 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-80I |
SM |
1550(DFB) |
80 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-H0I |
SM |
1550(DFB) |
100 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-H2I |
SM |
1550(DFB) |
120 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
军品级选型手册
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
Temperature ranges |
Signal TX /Signal RX/Signal Detect |
|
FTAF-1303-20M |
SM |
1310(FP) |
20 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1303-40M |
SM |
1310(FP) |
40 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1303-60M |
SM |
1310(FP) |
60 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-20M |
SM |
1550(FP) |
20 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-40M |
SM |
1550(DFB) |
40 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-60M |
SM |
1550(DFB) |
60 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-80M |
SM |
1550(DFB) |
80 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-H0M |
SM |
1550(DFB) |
100 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1503-H2M |
SM |
1550(DFB) |
120 |
-50°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
