Product Features
● 1490/ 1550 DFB Laser Diode with MQW Structure

● InGaAs PIN-TIA Photodiode Receiver
● Reach 80 km Transmission Distance on 9/125μm SMF
● Single Mode Transceiver SFP Footprint LC Optical Interface
● Compliant With SFP MSA and SFF-8472
● Digital Diagnostic Monitoring Interface
● Single +3.3V Power Supply
● CML Differential Inputs and Outputs
● LVTTL Signal Detection Output
● Compliant With IEEE802.3
● Compliant With RoHS and Lead Free
● Metal Enclosure for Lower EMI
● Operating Case Temperature:
Standard: 0 to +70°C
Extend: -20 to +85°C
Industrial: -40 to +85°C

Product Applications
● Gigabit Ethernet

● Fiber Channel
● ATM/SONET/SDH/Switch/Router
● Other Optical Transmission Systems

Absolute MaximumRatings

Parameter Symbol Min Max Unit
StorageTemperature Tst -40 +85 °C
OperatingTemperature TO BYCS-Bxx12-80D 0 +70 °C
BYCS-Bxx12-80DE -20 +85 °C
BYCS-Bxx12-80DI -40 +85 °C
InputVoltage – GND VCC V
Power Supply Voltage VCC-VEE 0 +3.6 V
Note:Stressinexcessofmaximumabsoluteratingscancausepermanentdamagetothe module.

Recommended OperatingConditions

Parameter Symbol Min Typ Max Unit
StorageTemperature Tst -40 – +85 °C
OperatingCaseTemperature TC BYCS-Bxx12-80D 0 – +70 °C
BYCS-Bxx12-80DE -20 – +85 °C
BYCS-Bxx12-80DI -40 – +85 °C
PowerSupplyVoltage VCC 3.1 3.3 3.5 V
PowerSupplyCurrent ICC – – 300 mA
DataRate DR – 1.25 – Gbps

OpticalSpecification

Transmitter
Paramet                      Symbol Min Typ Max Unit Note
Center Wavelength 1490 DFB λC 1480 1490 1500 nm
1550 DFB 1530 1550 1580
Spectral Width DFB Δλ – – 1 nm –
SMSR 30 dB
Average Optical Output Power Po -2 – 3 dBm –
Extinction Ratio ER 9 – – dB –
Optical Rise/Fall Time(20%-80%) Tr/Tf – – 0.28 ns –
 Receiver
 Parameter Symbol Min Typ Max Unit Note
Operate Wavelength λC 1261 – 1360 nm –
1490 1510 1580
Receiver Sensitivity RSENS – – -26 dBm 1
Receiver Saturation PRS -3 – – dBm 1
LOS Assert – -40 – – dBm Alarm: High-level
LOS De-Assert – – – -26 dBm
LOS Hysteresis – 0.5 – 5 dBm –
Note:1.MinimumSensitivity and saturation levels for a 2^7-1PRB Stest pattern@1.25Gbps.

ElectricalSpecification

Transmitter
Paramet Symbol Min Typ Max Unit Note
Power Supply Current ICCT – 100 220 mA 2
Input Differential Impedance ZIN 90 100 110 Ω –
Input Swing Differential Voltage VIN 350 – 1600 mV 3
TX-Disable Voltage Disable – 2.0 – VCC V –
Enable – 0 – 0.8 V –
TX-Fault Voltage Fault – 2.0 – VCC V –
Normal – 0 – 0.8 V –
Receiver
Paramet Symbol Min Typ Max Unit Note
Power Supply Current ICCR – 70 150 mA 2
Output Swing Differential Voltage VOUT 800 – 2000 mV 4
LOS Voltage High – 2.0 – VCC V –
Low – 0 – 0.8 V –
Note:

2. The current excludes the output load current.
3. CML input, internally AC-coupled and terminated.
4. Internally AC-coupled.

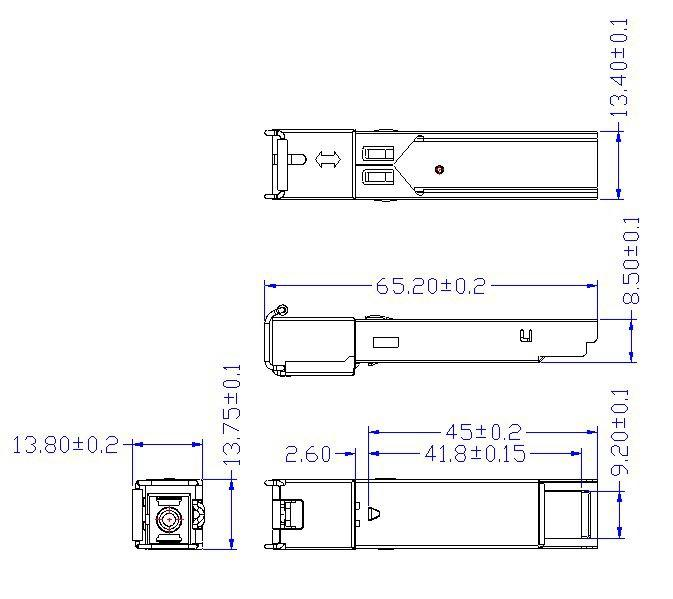

Package Diagram
Board Layout Hole Pattern


LC Side Interface


SC Side Interface


OrderInformation

产品型号 封装 波长(-xx) 速率(xx) 传输距离(-xx) x 等级(x)
BYCS-B4512-80Dxx /
BYCS-B5412-80Dxx
SFP B45=T1490/R1550
B54=T1550/R1490
12=1.25G 80=80km 空 不带DDM
D 带DDM
空 商业级
E 扩展级
I 工业级
