155M 多模 2km 1×9光模块

Product Features
● Uncooled laser diode with MQW structure
● Reach 2 km Transmission Distance
● Duplex MultiMode Transceiver 1×9 Footprint
● SC, FC or ST Optical Interface are Optional
● Single +3.3V or +5V Power Supply
● PECL/LVPECL Differential Inputs and Outputs
● PECL/LVPECL Signal Detection Output alternative
● Fast Ethernet and ITU G.957 Compliant
● Compliant RoHS and lead free
● Complies with Telcordia GR-468-CORE
● Operating case temperature:
Standard: 0 to +70°C
Extend: -20 to +85°C
Industrial: -40 to +85°C

Product Applications
● ATM
● SONET/SDH
● Fast Ethernet
● Switches
● Routers
● Hubs

Performance Specifications
AbsoluteMaximumRatings

Recommended Operating Conditions

Optical Specification

 Note: 1.Minimum Sensitivity and saturation levels for a223-1+++++PRBS testpattern@155Mbps.

Package Diagram

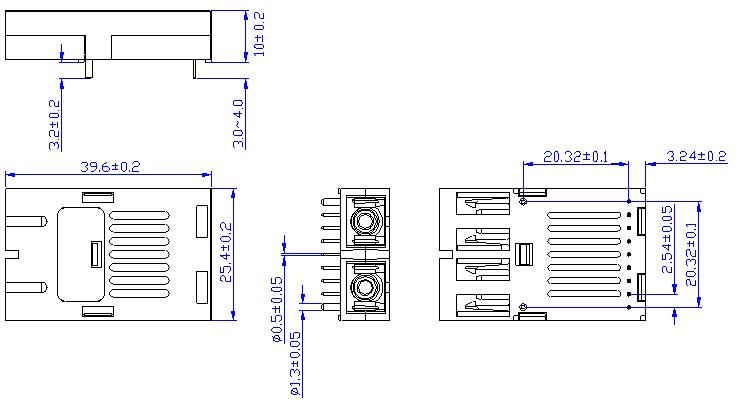

SC Interface

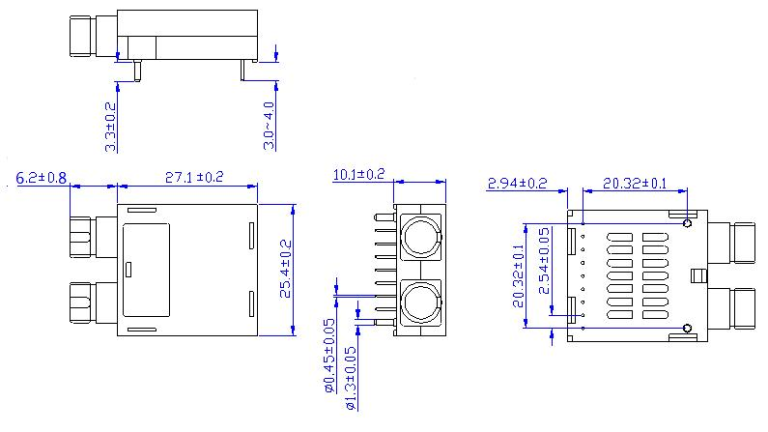

FC Interface

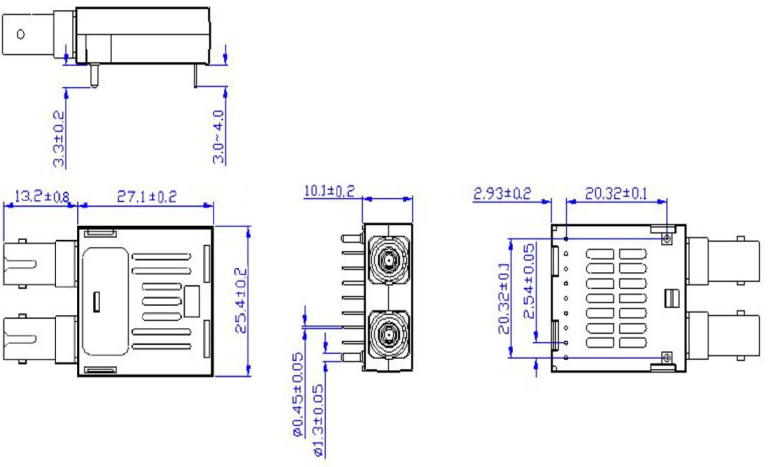

ST Interface

Order information

北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702

注：本产品为1*9光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
