100GBASE-LR4 CFP2 10km Optical Transceiver (FTC2-HG-LR4xx)

100GBASE-LR4 CFP2 10km Optical Transceiver (FTC2-HG-LR4xx)

0.0/5 rating (0 votes)

Description

Description
The F-tone Networks CFP2 100GEBASE-LR4 optical transceiver is a hot pluggable 100Gbps small-form-factor transceiver module .It is compliant with IEEE802.3ba and CFP2 MSA. The module is a multi-rate optical transceiver and intended to support Telecom and Datacom applications.

Features
● 1310 nm window cooled EA-DFB LD and PIN ROSA
● Operating optical data rate up to 112Gbps
● CFP2 MSA compliant
● Compliant to IEEE 802.3ba specification for 100GBASE-LR4
● Compliant to OTU4
● Transmission distance up to 10km
● Operating electrical serial data rate up to 27.952493Gbps
● 4 parallel electrical serial interface and AC coupling of CML signals
● MDIO real-time digital diagnostic(Optional) and control capabilities
● TX input and RX output CDR retiming
● Hot pluggable
● Total Power Consumption<6W
● 3.3V power supply
● Duplex LC receptacle optical interface
● Compliant with CFP2 MSA hardware specification
● Compliant with CFP MSA management specification
● RoHS 2.0 compliant (lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3ba 100GBASE-LR4
● OTN-OTU4
● Switch to switch interface or Switch to router interface

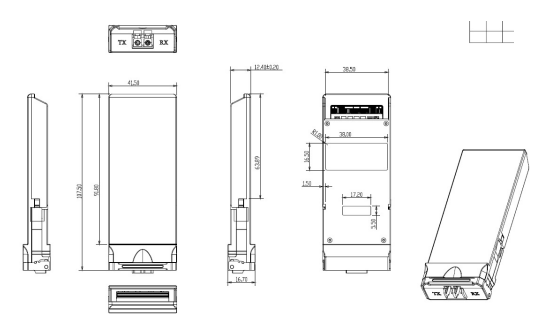

Mechanical DimensionsFTC2 HG LR4xx

Ordering Information

Part Number

Product Description

FTC2-HG-LR4

CFP2, 100GE/OTU4,10km,100GBASE-LR4, Pout -4.3 ~ +4.5 PIN <-8.6dBm,0ºC ~ +70ºC

FTC2-HG-LR4I

CFP2, 100GE/OTU4,10km,100GBASE-LR4, Pout -4.3 ~ +4.5 PIN <-8.6dBm,-40ºC ~ +85ºC













本产品为25G~400G高速光模块系列，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
