Description
The F-tone Networks CFP2 100GEBASE-ER4 optical Receiver is a hot pluggable 100Gbps small-form-factor transceiver module. It is designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber. It is compliant with the CFP MSA, IEEE 802.3ba 100GBASE ER4 and OTU4 4L1-9C1F. Digital diagnostics functions are available via the MDIO interface. On the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The module is a multi-rate optical transceiver which data rate up to 28Gbps per channel. The high performance PIN-base Integrated ROSA with SOA provide superior performance for Telecom and Datacom applications up to 40km links.

Features
● Data rate up to 28Gbps per channel
● Only 4 channels PIN-base Integrated ROSA with SOA(without transmitter)
● Compliant with CFP2 MSA hardware specification
● Compliant with CFP MSA management specification
● Compliant to IEEE 802.3ba specification for 100GBASE-ER4
● Compliant to OTU4
● Transmission distance up to 40km on SMF
● 4 parallel electrical serial interface and AC coupling of CML signals
● MDIO real-time digital diagnostic(Optional) and control capabilities
● Internal CDR circuits on receiver channels
● Hot pluggable
● Total Power Consumption < 3.5 W
● 3.3V power supply
● LC receptacle optical interface
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3ba 100GBASE-ER4
● ITU-T G.959.1 OTU4 (4L1-9C1F)
● Switch to switch interface or Switch to router interface

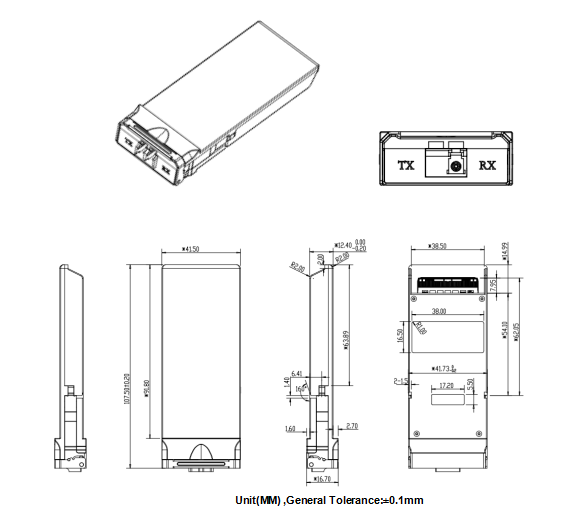

Mechanical Dimensions

Ordering information

本产品为25G~400G高速光模块系列，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
