XFP-850多模光模块

XFP-850多模光模块

0.0/5 rating (0 votes)

Specifications

  • 产品型号: FTCX-851X-02X
  • 兼容品牌: 全系列
  • 封装类型: XFP
  • 传输速率: Supports 9.95Gbps to 10.5Gbps bit rates
  • 传输距离: 传输距离300米
  • 发射波长: 850nm
  • 接收波长: 850nm
  • 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
  • 数字诊断: 带DDM
  • 接收灵敏度: 传输距离300米
  • 接收灵敏度: 传输距离300米

Description

XFP 10G SR/SW 850nm 300m万兆多模光模块，支持10Gb/s传输速率，850nm波长)，可支持传输距离300m。支持热插拔，双纤双向传输，带数字诊断监控功能 ，支持温度范围（商业级： 0℃~+70℃/工业级：-40℃~+85℃）。主要应用于：10GBASE-SR/SW 10G Ethernet万兆以太网， 1200-Mx-SN-I 10G Fibre Channel光纤通道。该产品由F-tone公司自己研发生产，具有高密度低功耗的特点，产品拥有极高性价比。产品兼容CISCO，HP，华为，博科，QLogic，H3C，3COM，JUNIPER，EXTREME等国内外主流相关设备。产品通过CE，FCC，RoHS等国际认证。XFP光模块（10G小型可插拔）是主要应用于万兆以太网，10 Gbit / s的光纤通道，同步光网络（SONET）的10g光收发模块。该类产品包括双纤双向XFP光模块，与单纤双向XFP BIDI光模块。

Features
     Supports 9.95Gbps to 10.5Gbps bit rates
     Maximum link length of 300m (50um,MMF,2000MHz.Km)
     850nm VCSEL laser and PIN receiver
     Low power consumption <1.5W
     +3.3V +1.8Vpower supply
     XFP MSA package with duplex LC connector
     XFI electrical interface
     No reference clock required
     Compatible with RoHS
     Excelllent EMI performance
     Built-in digital diagnostic functions
     Temperature range: 0℃ to +70℃
     High reliability
Applications
     10GBASE-SR/SW 10G Ethernet
     1200-Mx-SN-I 10G Fibre Channel
     Other optical links

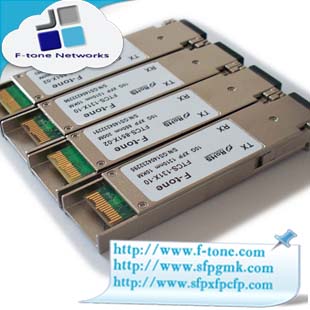

XFP 850nm
Description
F-tone Networks GX-85192-SRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).

The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

订货信息/Ordering information :

Part No. Description
FTCX-851X-02 XFP,10G, MMF 多模    (1310nm,550M,LC,Temperature:0 ~+70℃)
FTCX-851X-02I XFP,10G, MMF 多模    (1310nm,550M,LC,Temperature:-40~+85℃)
FTCX-851X-02D XFP,10G, MMF 多模    (1310nm,550M,LC,Temperature:0 ~+70℃,DDM)
FTCX-851X-02DI XFP,10G, MMF 多模    (1310nm,550M,LC,Temperature:-40~+85℃,DDM)
